About the product

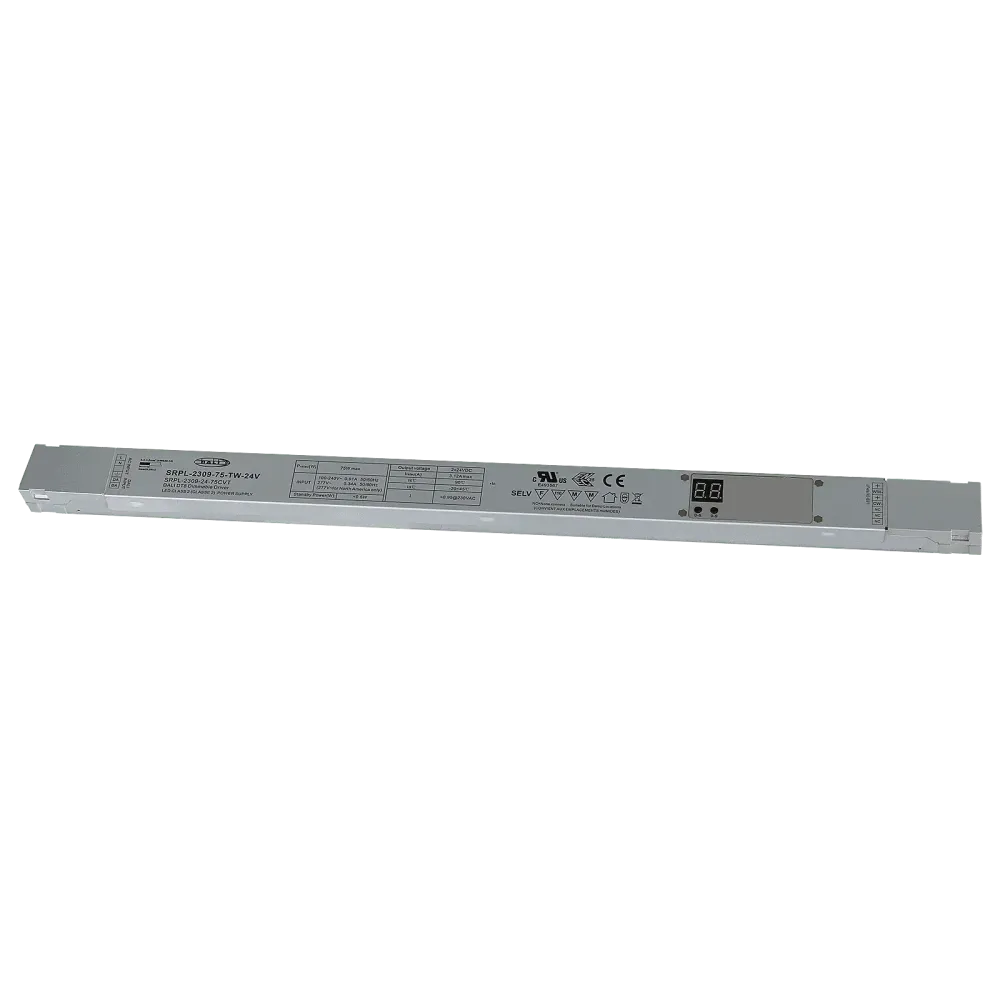

SRPL-2309-75L-TW-C1400 is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-dependent dimming range is 1% to 100% of the connected load.
Dimming method: Amplitude dimming, Flickerfree
Technical data
- DT8 dimmable 2-channel Tunable white power supply unit
- 100-277VAC wide input voltage range
- 2-channel constant current output
- Output current 1400mA
- Output voltage: 8-52VDC
- The maximum output power is 75W
- Class 2 power supply unit, fully insulated metal housing
- High power factor and efficiency
- Built-in DALI interface, DALI DT8 device, the device can be controlled via a Dali address
- Color control according to DALI DT8 specifications
- Complies with the DALI IEC 62386-209-:2011 standard
- Generally compatible with DALI masters that support DT8 commands
- IP20 Protection class
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 486 x 30.7 x 20.9mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Height | 20.9 mm |
| Width | 30.7 mm |
| Length | 486 mm |
| Control | DALI DT8 |
| Power | 75 W |
| Channels | 2 |
| Dimming type | Current control |
