30W DALI2 DT6, D4i, linear constant current LED driver, NFC

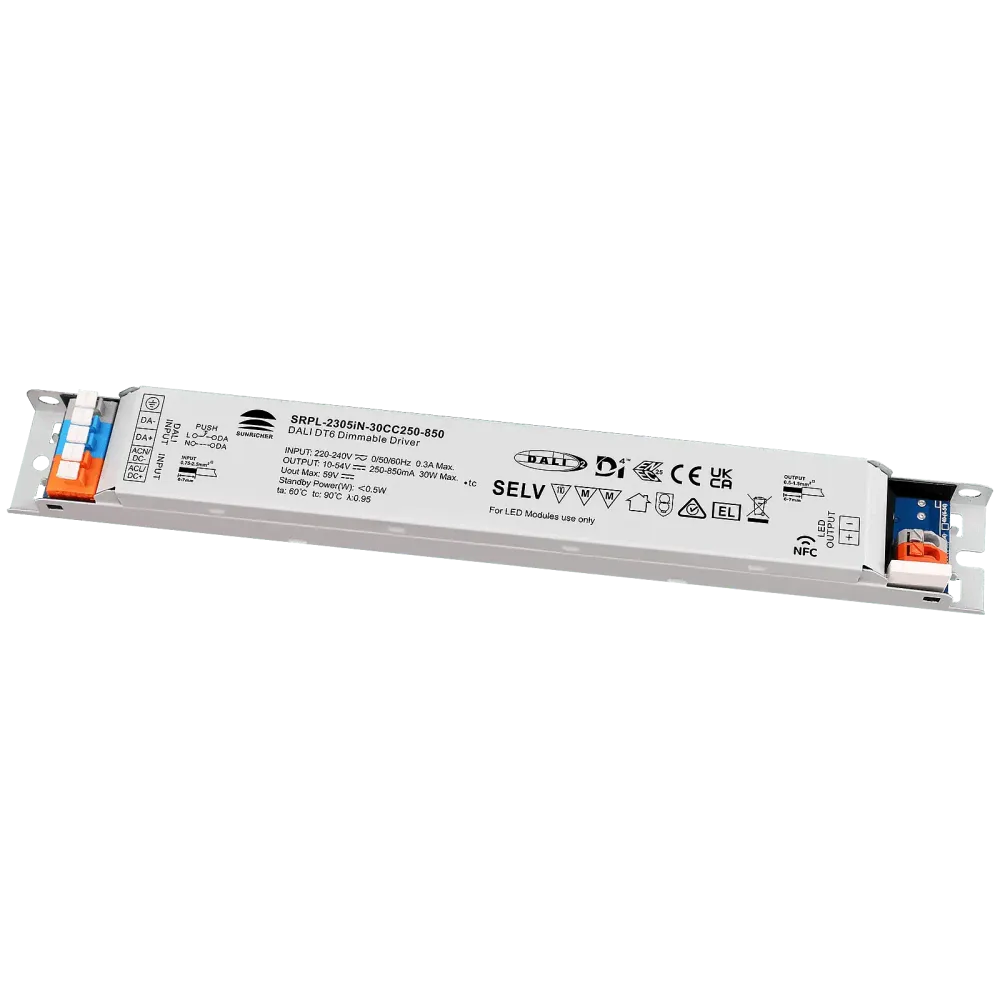

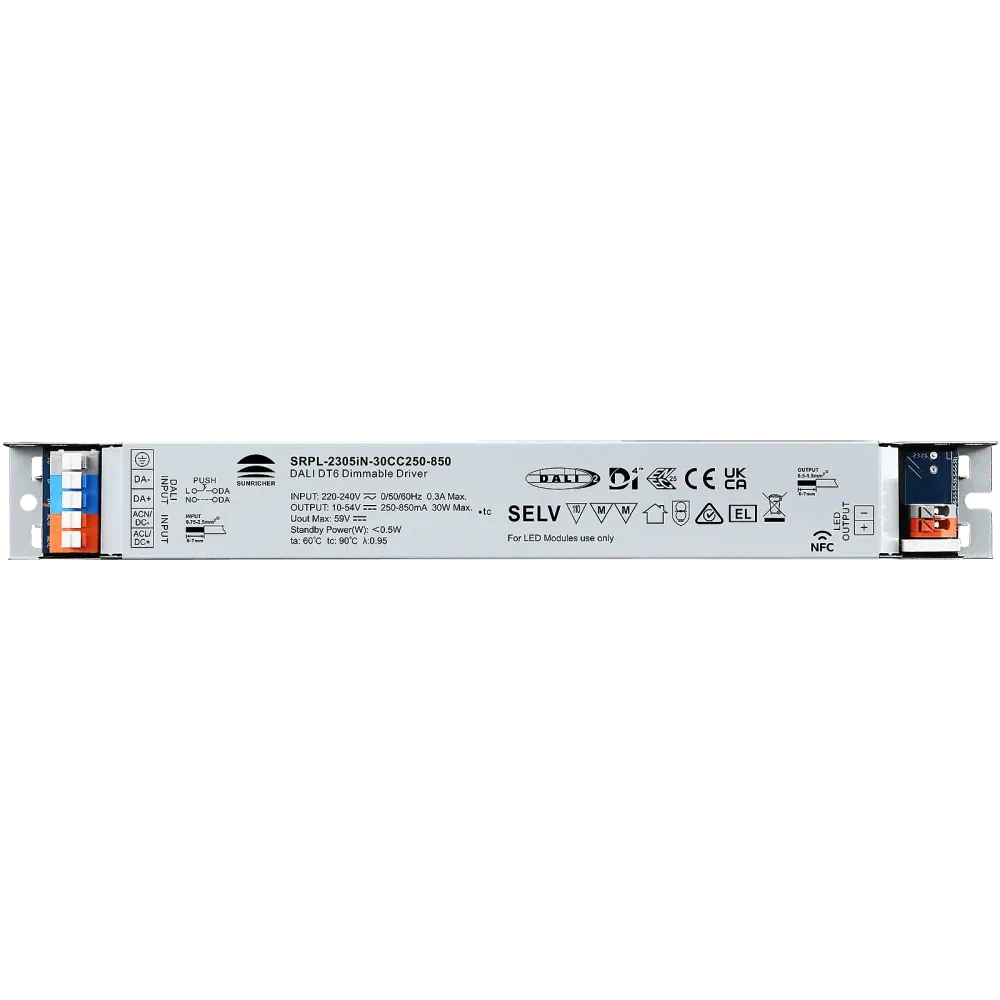

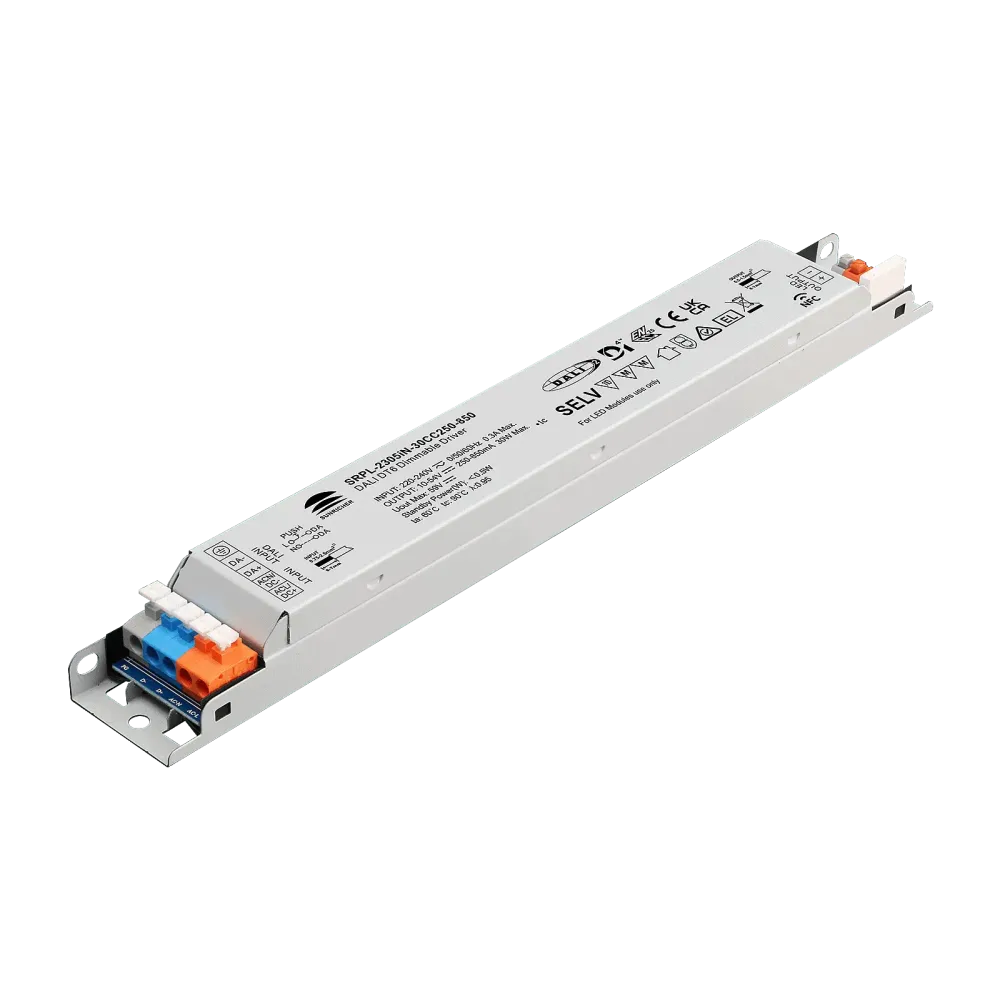

SRPL-2305IN-30CC250-850 is a flexible, dimmable 30W LED converter with constant current output.

The power supply unit can be controlled with DALI2 DT6.

The output current can be set between 250 and 850mA via NFC.

D4i certified, simple integration of DALI2 sensors.

In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.

Control

• DALI2 DT6, AC-PUSH, D4i

Application

• Single Color

Current setting

• NFC

Dimming range

The load-dependent dimming range is 0.1% to 100%
. Dimming method: Amplitude/CCR

Technical data

• DALI2 DT6, D4i and AC-PUSH dimmable 1-channel NFC power supply unit
• 1 channel 250~850mA constant current output, selectable via NFC program tool
• In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Setting the DALI address/group/scene via the NFC program tool Dimmable LED driver.
• Max. Output power 30W
• Output voltage range: 10-54VDC
• Class 2 power supply unit
• High power factor and efficiency
• For switching and dimming LED lighting fixtures
• Amplitude dimming, smooth and deep dimming down to 0.01%
• Compatible with universal DALI masters that support DT6 commands
• DALI-250/251/252/253 Activated
• Integrated max. 56mA DALI BUS supply, enables the supply of DALI-2 sensors.
• Protection class IP20
• 5 year guarantee
• Dimensions: 243 x 30 x 21mm
