About the product

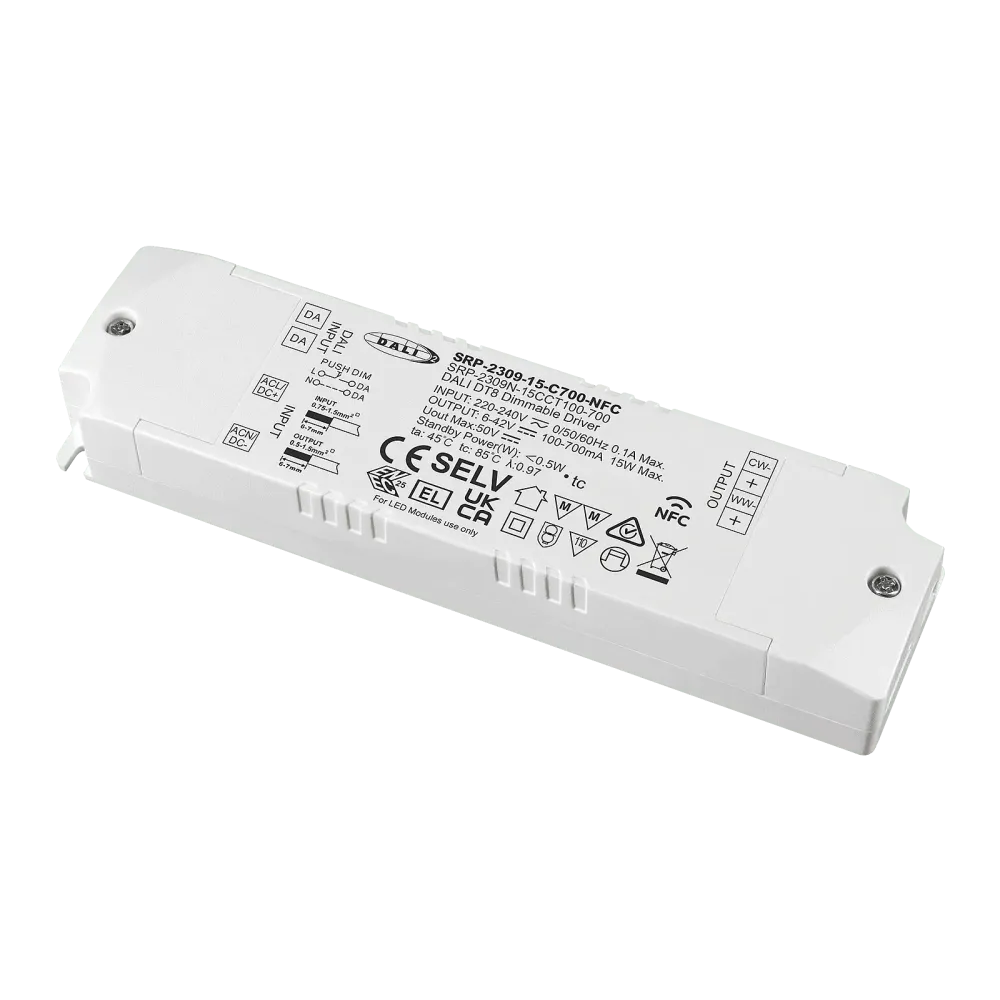

SRP-2309-15-C700-NFC is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI2 DT8. The output current can be set between 100 and 700mA via NFC.
Control
- DALI2 DT8
Application
- Tunable White
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
- DALI2 DT8 dimmable 2-channel TW power supply unit
- 2 channel 100~700mA constant current output, selectable via NFC program tool
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Built-in DALI2 interface, DALI DT8 device
- Dimmable LED driver. Max. output power 15W
- Output voltage range: 6-42VDC
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming Tunable White LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT8 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: 135 x 35 x 20mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Height | 20 mm |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| Application | Tunable White |
| IP protection | IP20 |
| Length | 135 mm |
| Current setting | NFC |
| Power | 15 W |
| Control | DALI DT8, AC Push Dimming |
| Channels | 2 |
| Width | 35 mm |
| Manufacturer | Sunricher |
| Dimming type | Current control |
