36W DALI2 DT6 / AC-PUSH, constant current LED driver, NFC

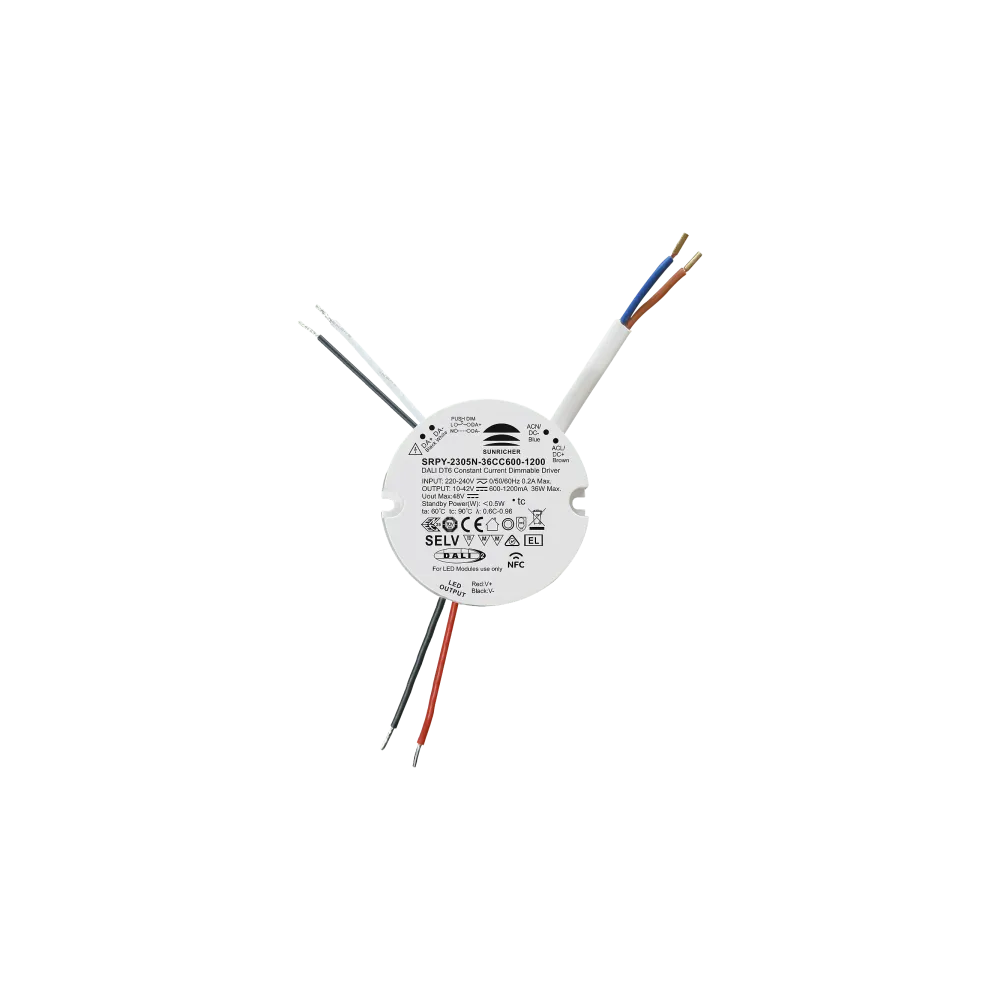

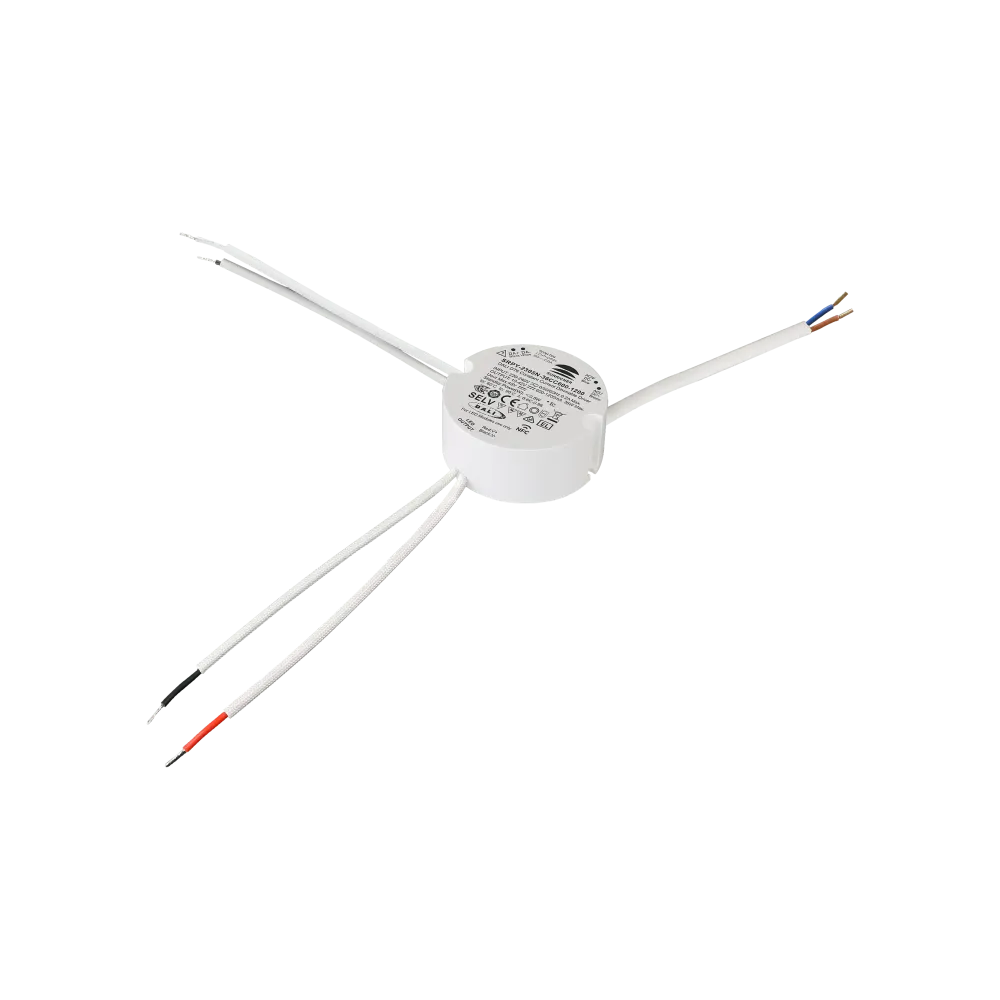

SRPY-2305-36CC600-1200 is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI. The round format is ideal for recessed spotlights and downlights.

Control

• DALI2, DALI DT6, AC-PUSH

Application

• Single Color

Current setting

• NFC

Dimming range

The load-dependent dimming range is 0.1% to 100% of the connected load.

Dimming method: Amplitude/CCR, smooth and deep dimming down to 0.1%

Functions

• CLO function for an even better experience
• CD(Corridor Mode): automatic switching on of the light when someone enters the room

Technical data

• DALI2 DT6 and AC-PUSH dimmable 1-channel single color power supply unit
• 1 channel 600~1200mA constant current output, selectable via NFC program tool, default 1000mA
• 200-240VAC wide input voltage range
• Output voltage: 10-42VDC
• The maximum output power is 36W
• Built-in DALI2 interface, DALI2 DT6 device
• Generally compatible with DALI masters that support DT6 commands
• CLO function for an even better experience
• CD(Corridor Mode): automatic switching on of the light when someone enters the room
• Amplitude dimming, smooth and deep dimming down to 0.01%
• Error message Function
• IP20 Protection class
• Protection class II Driver without earth connection
• Plastic housing
• Operating temperature range from -20°C to +60°C
• Dimension Ø57 x 24mm
• 5 year guarantee
