About the product

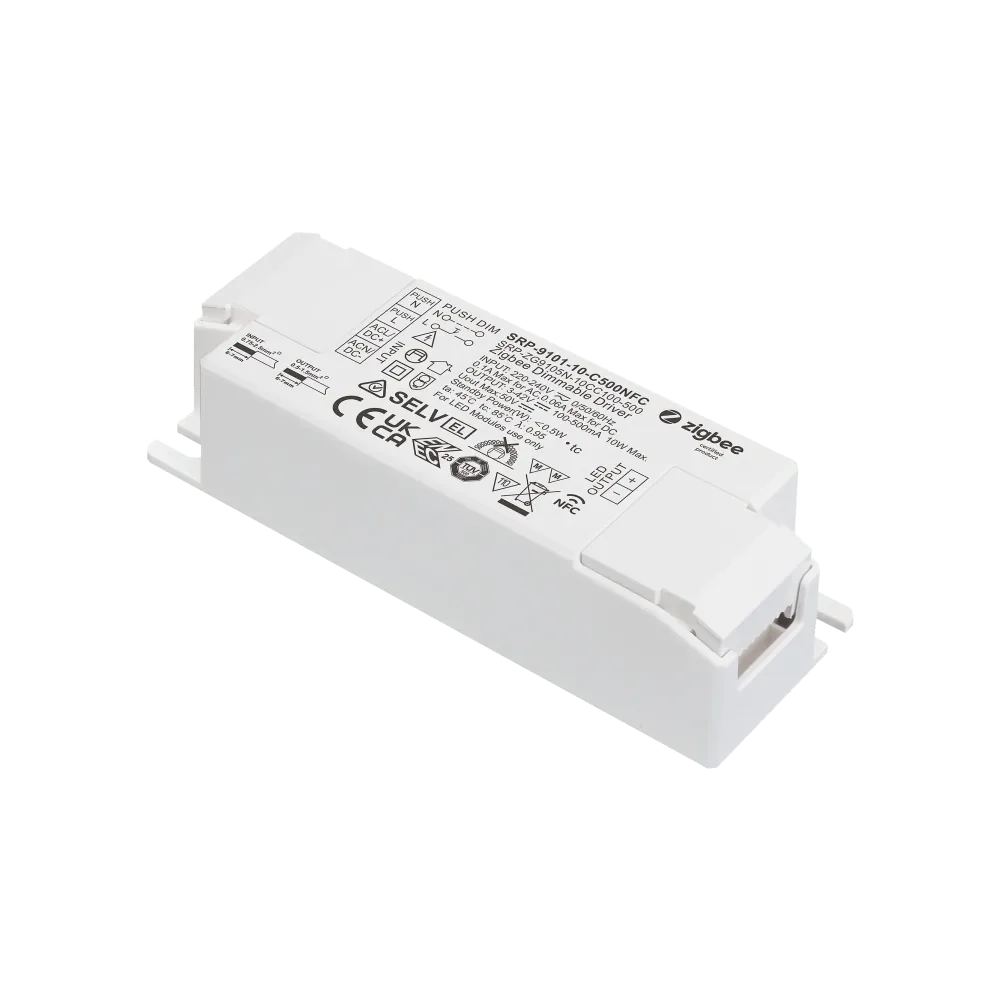

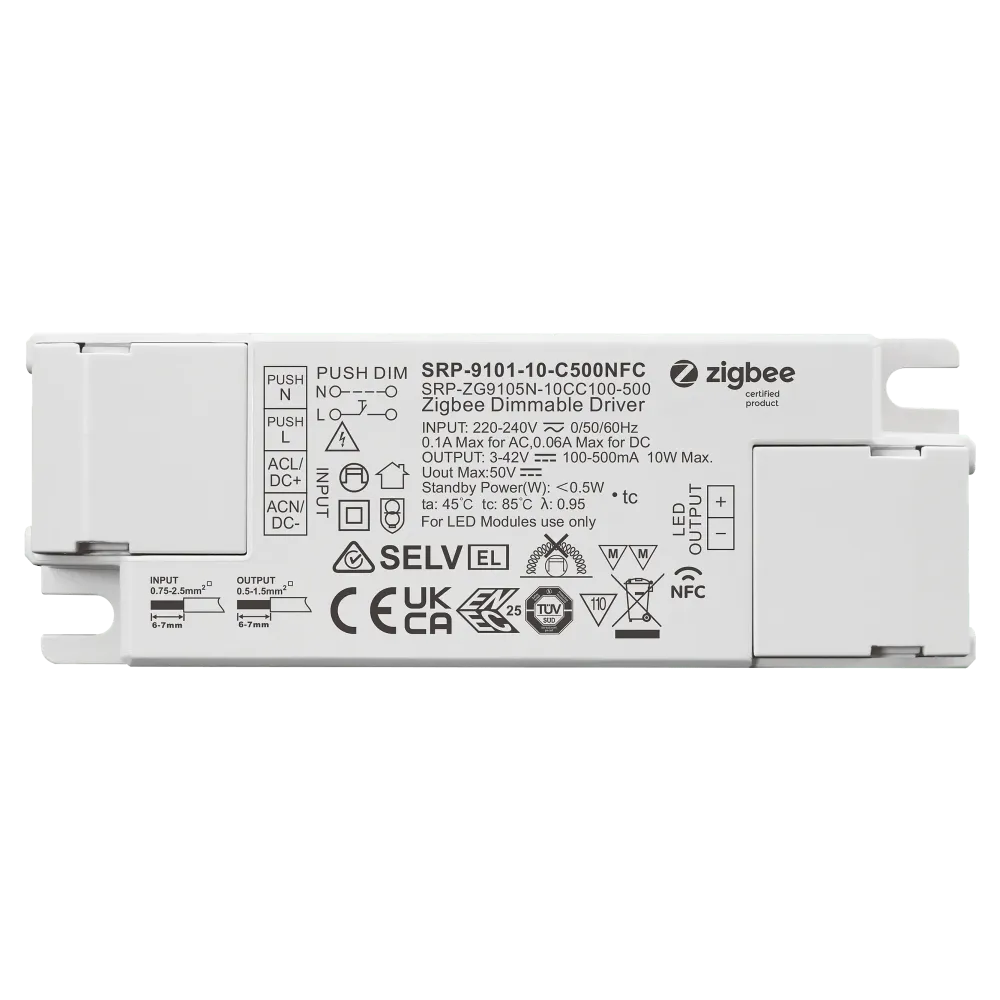

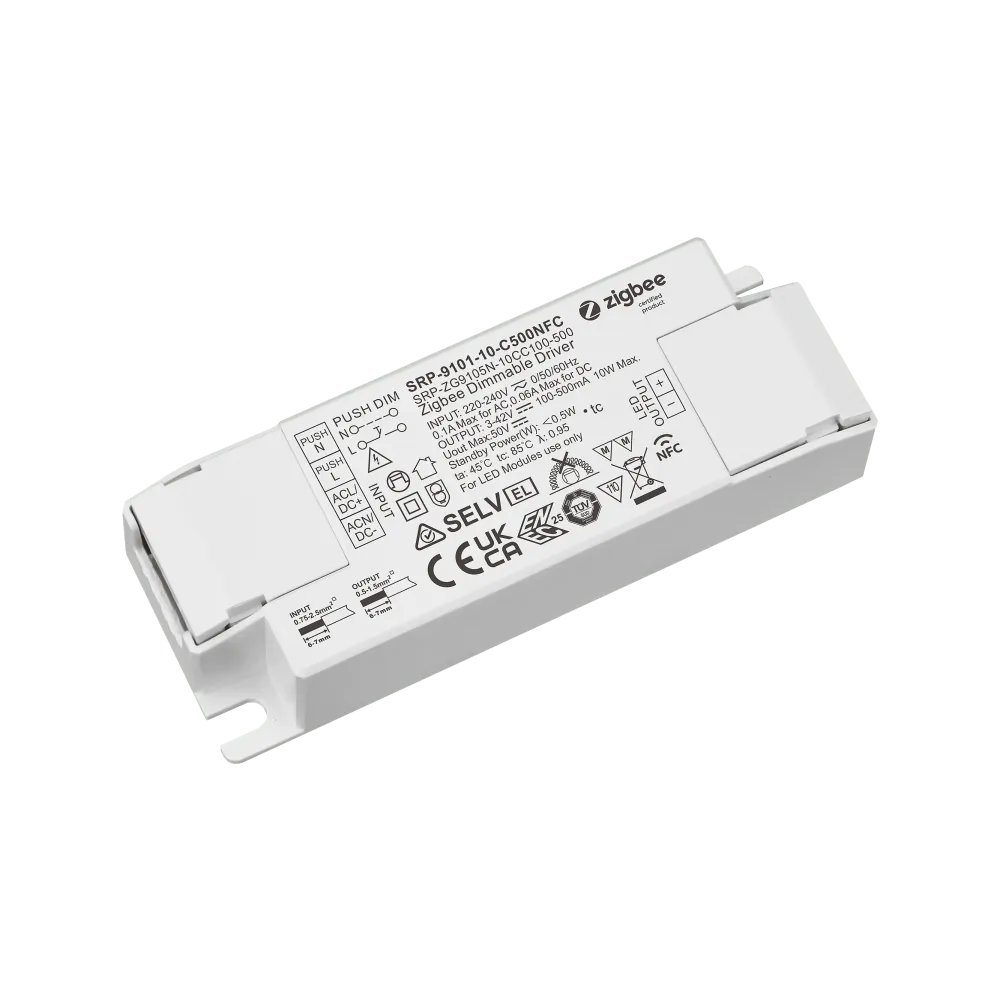

SRP-9101-10-C500NFC is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with ZigBee. The output current can be set between 100 and 500mA via NFC.
Control
- ZigBee 3.0, AC-Push
Application
- Single Color
Current setting
- NFC
Dimming range
- The dimming range is 0.01% to 100% at max current
Dimming method
- Amplitude / CCR dimming
Technical data
- ZigBee Single color LED driver, based on ZigBee 3.0 protocol
- Compatible with universal ZigBee gateway products
- Can be controlled directly (without ZigBee hub) via Touch Link
- 200-240VAC Input voltage range
- The maximum output power is 10W
- Adjustable constant current output, 100-500mA, default 260mA
- The output current can be selected with NFC
- Supports ZigBee green power and can be operated with up to 20 ZigBee green power remote controls
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 101 x 36 x 25mm
- 5 year guarantee
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Manufacturer | Sunricher |
| Dimming type | Current control |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Width | 36 mm |
| Length | 101 mm |
| Current setting | NFC |
| Height | 25 mm |
| Power | 10 W |
| Channels | 1 |
| Application | Single color |
| Control | AC Push Dimming, ZigBee 3.0 |
