About the product

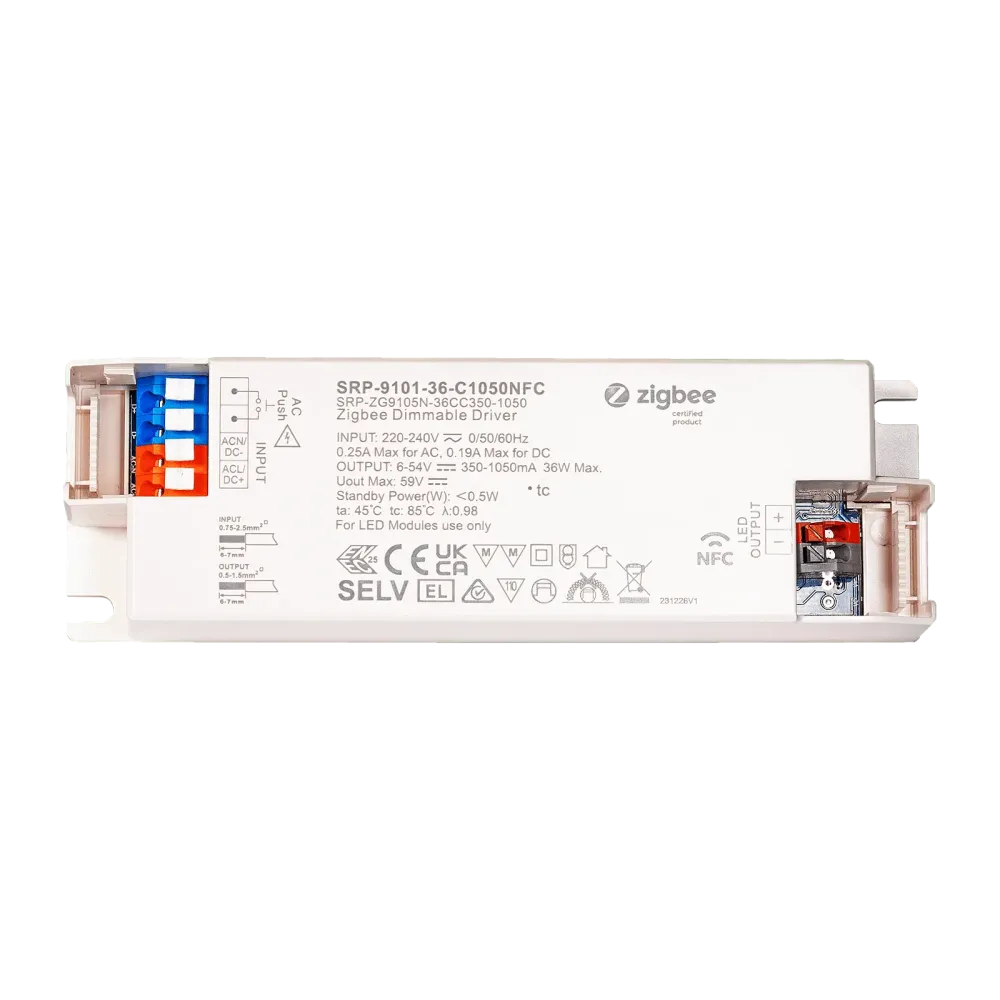

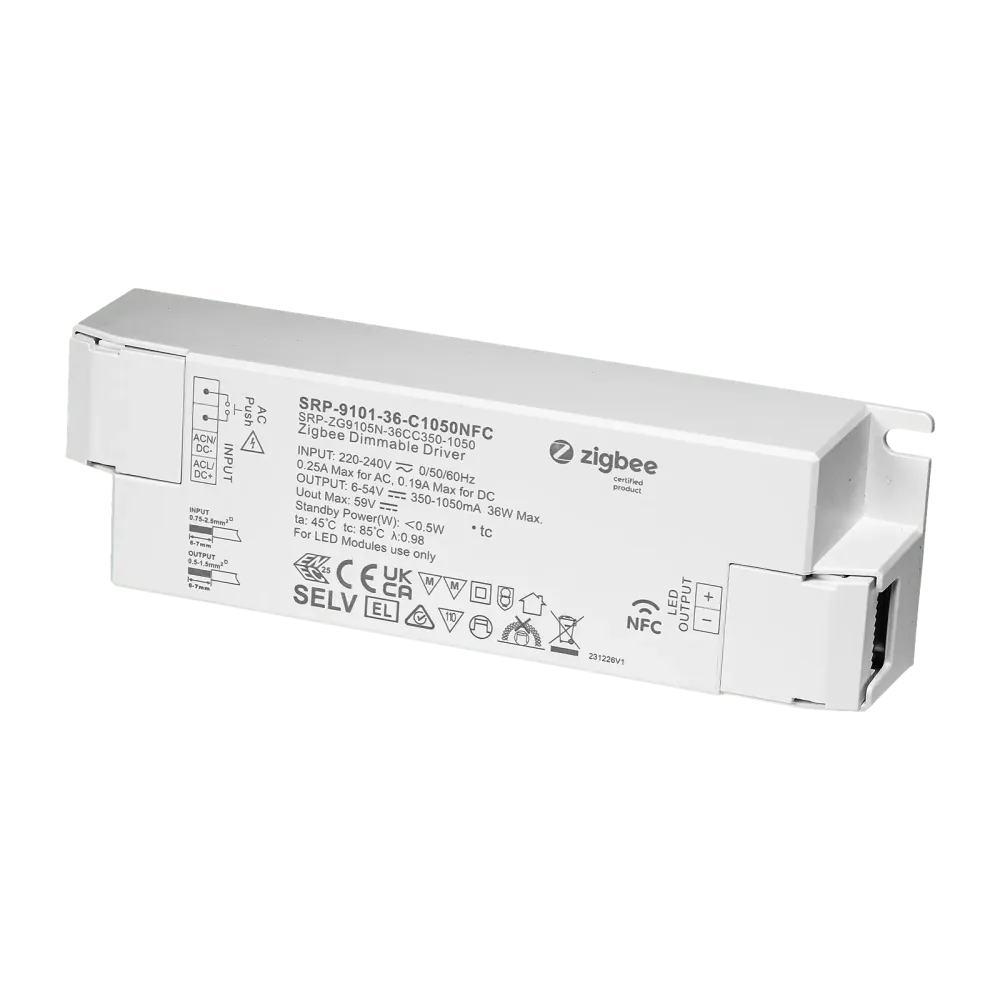

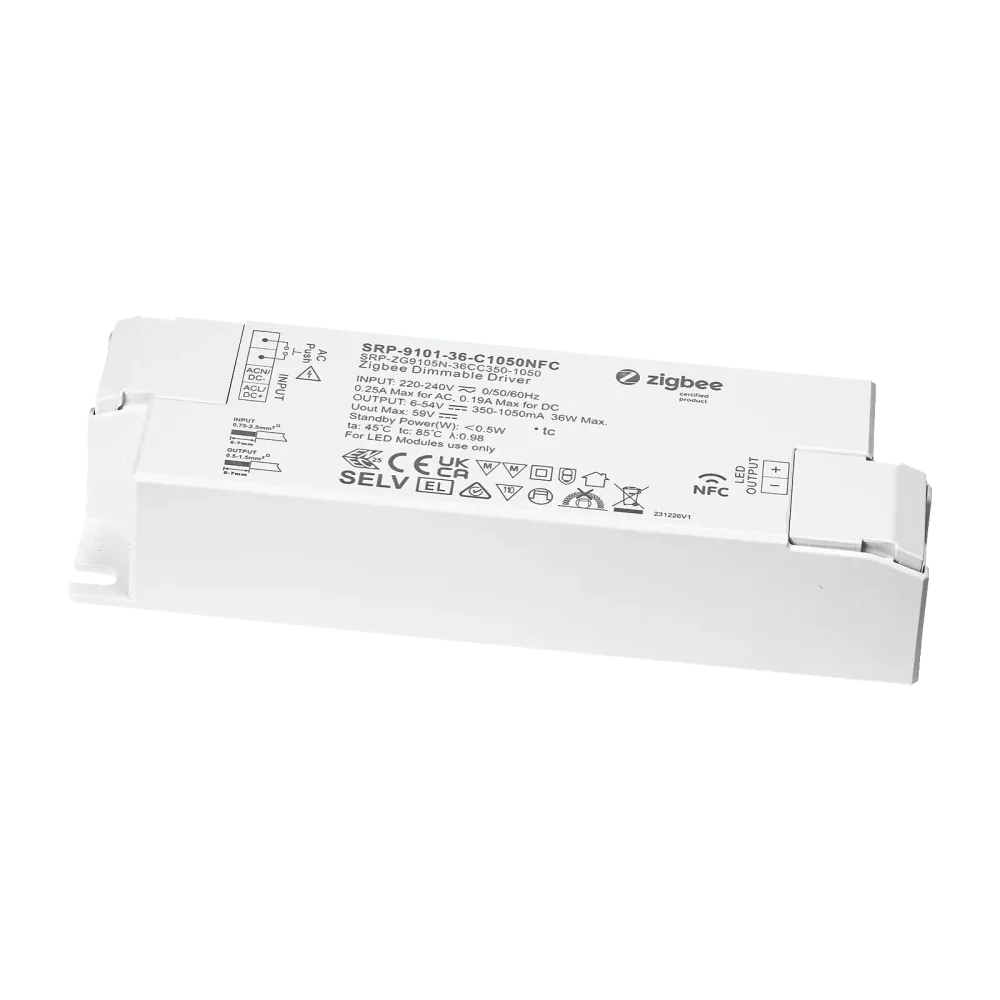

SRP-9101-36-C1050NFC is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with ZigBee.
Control
- ZigBee 3.0
Application
- Single Color
Dimming range
The dimming range is 0.01% to 100% at max current.
Dimming method: Amplitude / CCR dimming
Technical data
- ZigBee Single color LED driver, based on ZigBee 3.0 protocol
- Compatible with universal ZigBee gateway products
- Can be controlled directly (without ZigBee hub) via Touch Link
- 200-240VAC Input voltage range
- The maximum output power is 36W
- Adjustable constant current output, 350-1050mA
- The output current can be selected with NFC
- Supports ZigBee green power and can be operated with up to 20 ZigBee green power remote controls
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 145 x 45 x 28mm
- 5 year guarantee
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Control | ZigBee 3.0 |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 145 mm |
| Current setting | NFC |
| Height | 28 mm |
| Power | 36 W |
| Width | 45 mm |
| Channels | 1 |
| Application | Single color |
| Dimming type | Current control |
