About the product

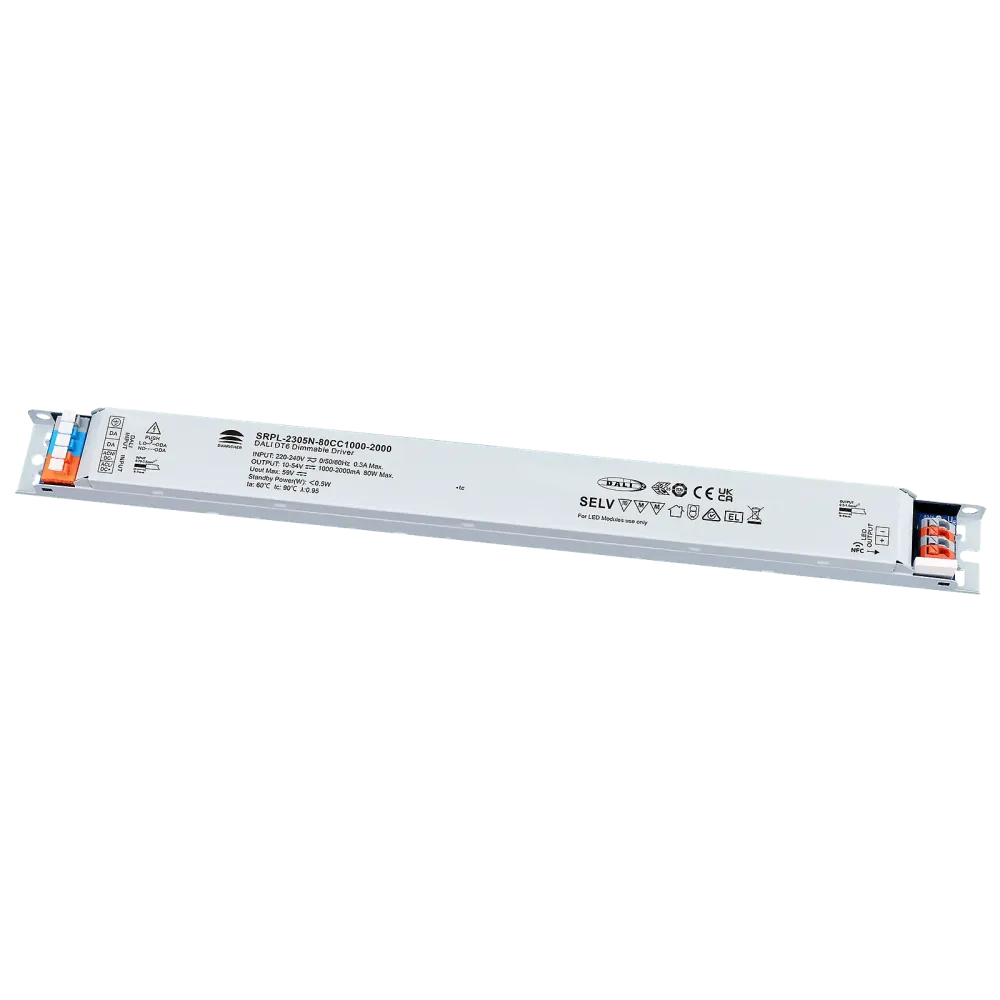

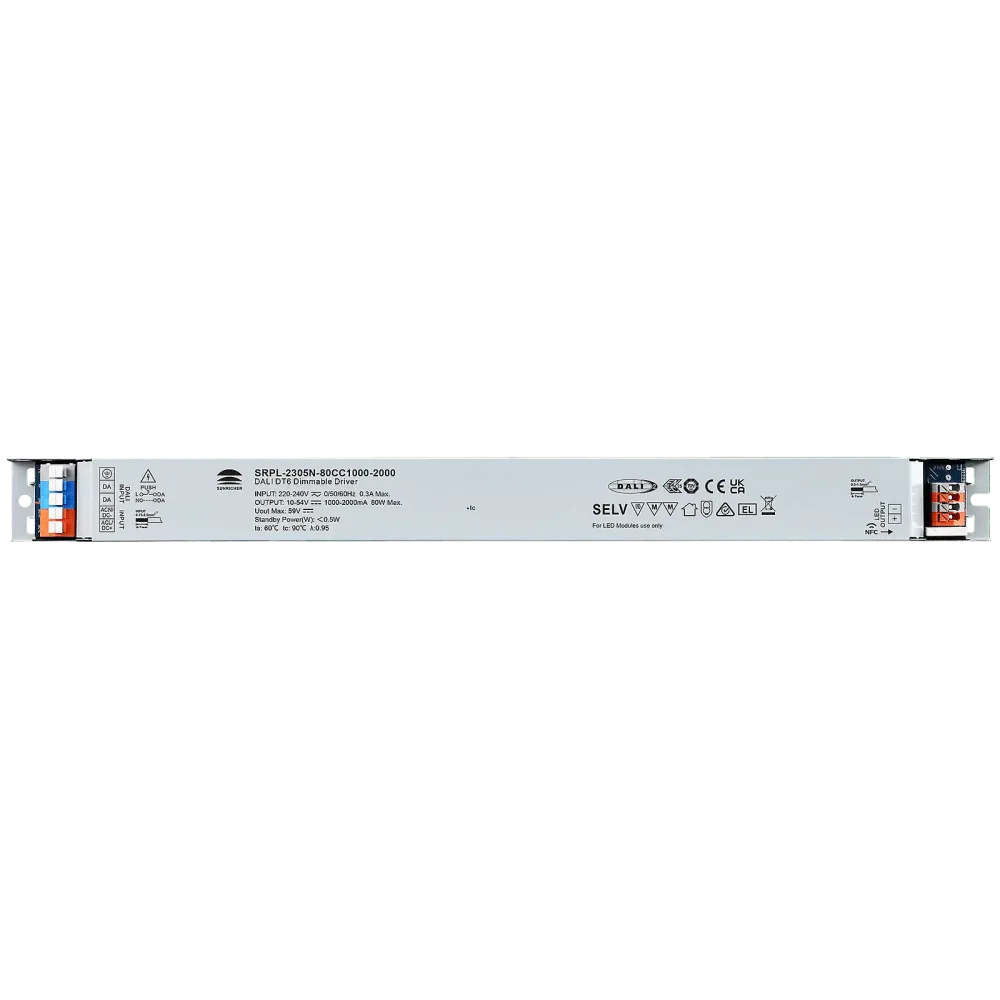

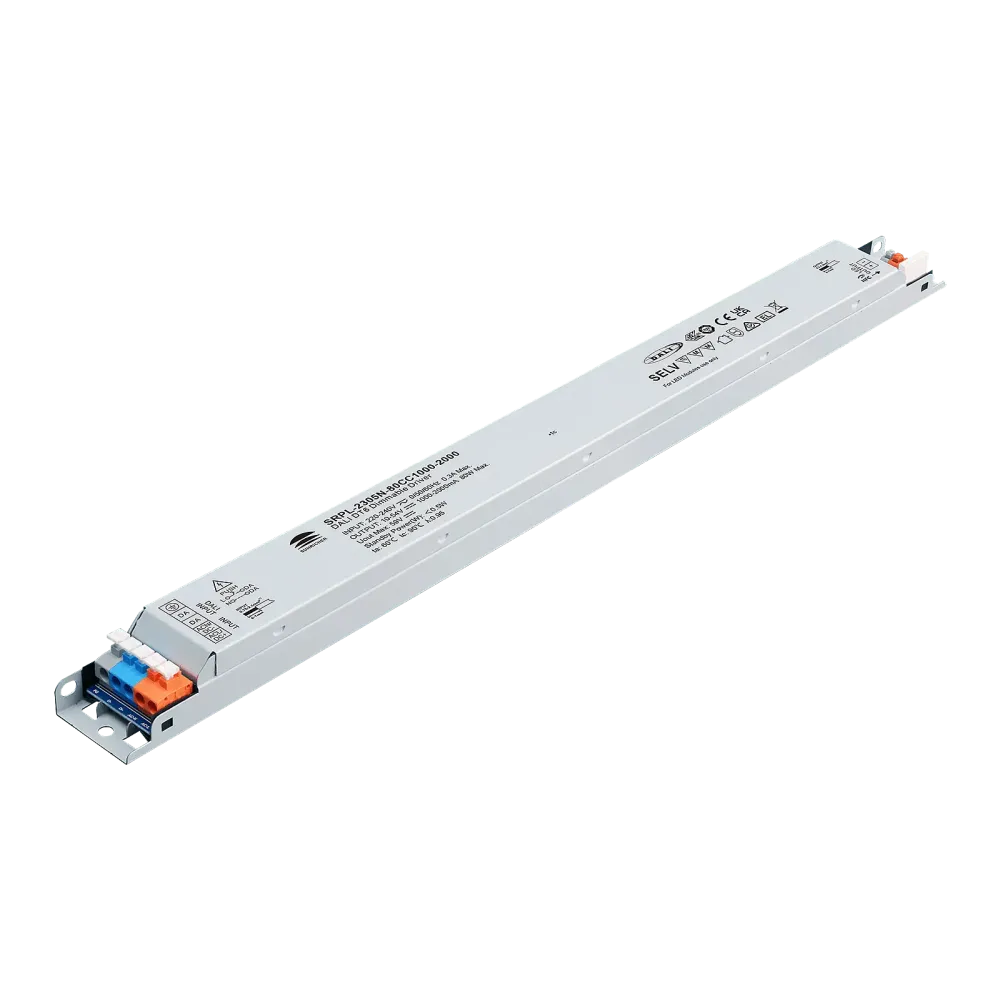

SRPL-2305N-80CC1000-2000 is a flexible, dimmable 80W LED converter with constant current output. The power supply unit can be controlled with DALI2 DT6. The output current can be set between 1000 and 2000mA via NFC.
In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.
Control
- DALI2 DT6, AC-PUSH
Application
- Single Color
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitudes/CCR
Technical data
- DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
- 1 channel 1000~2000mA constant current output, default 1800mA, selectable via NFC program tool
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Built-in DALI2 interface, DALI DT6 device
- Setting the DALI address/group/scene via the NFC program tool
- Dimmable LED driver. Max. output power 80W
- Output voltage range: 10-54VDC
- Class 2 power supply unit
- High power factor and efficiency
- For switching and dimming LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT6 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: 355 x 30 x 21mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 355 mm |
| Current setting | NFC |
| Control | DALI, AC Push Dimming |
| Power | 80 W |
| Width | 30 mm |
| Channels | 1 |
| Application | Single color |
| Height | 21 mm |
| Dimming type | Current control |
