About the product

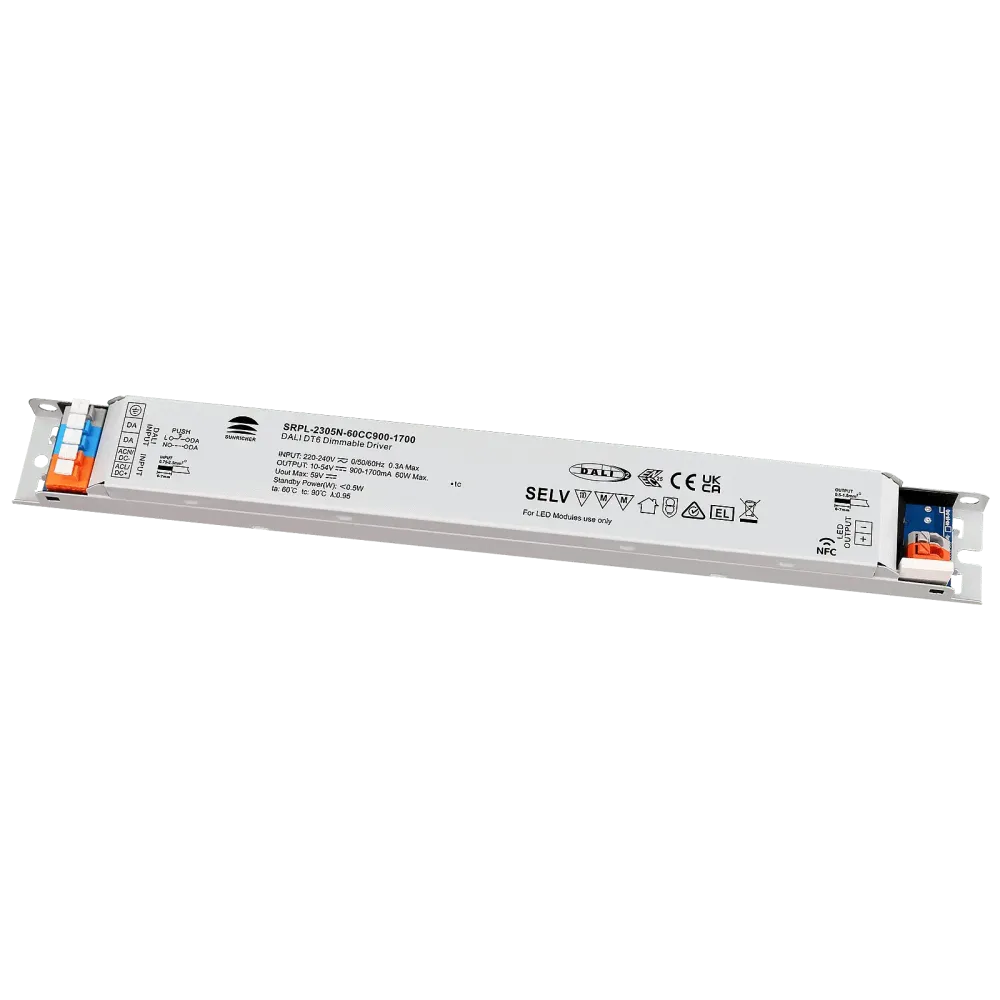

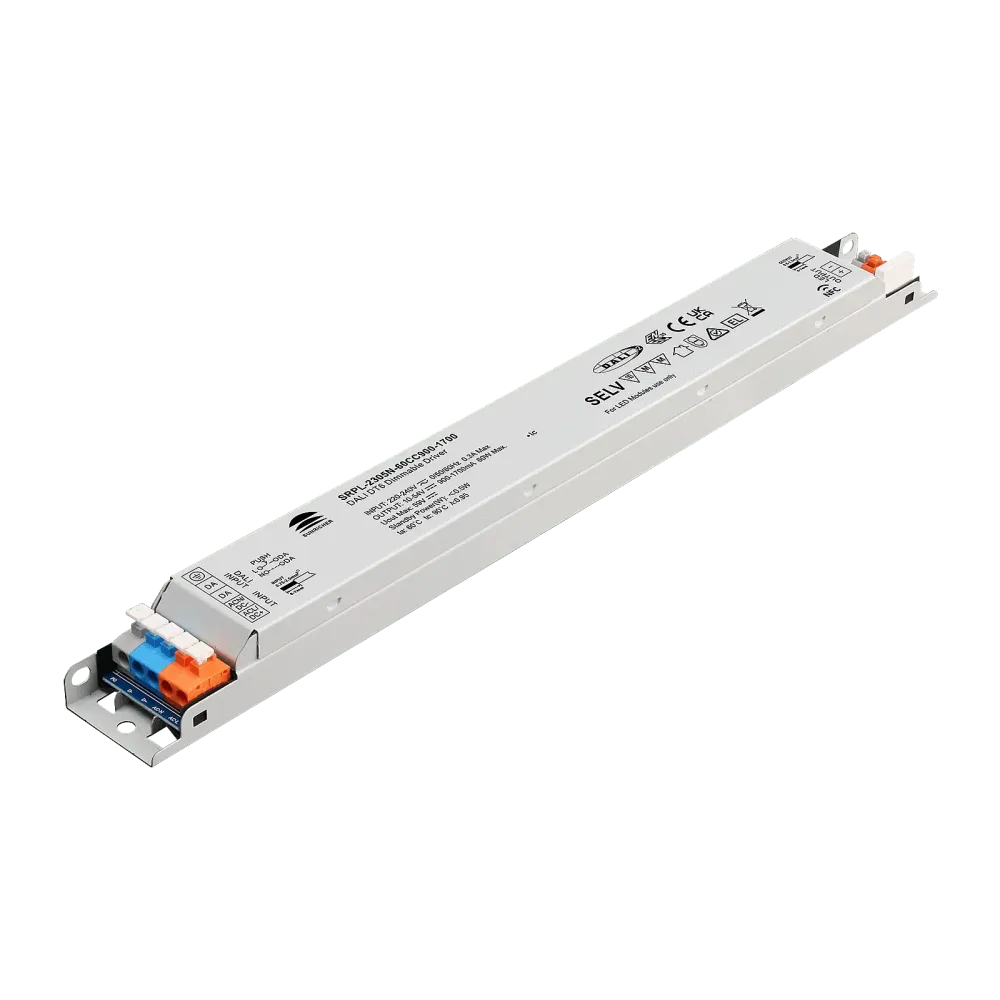

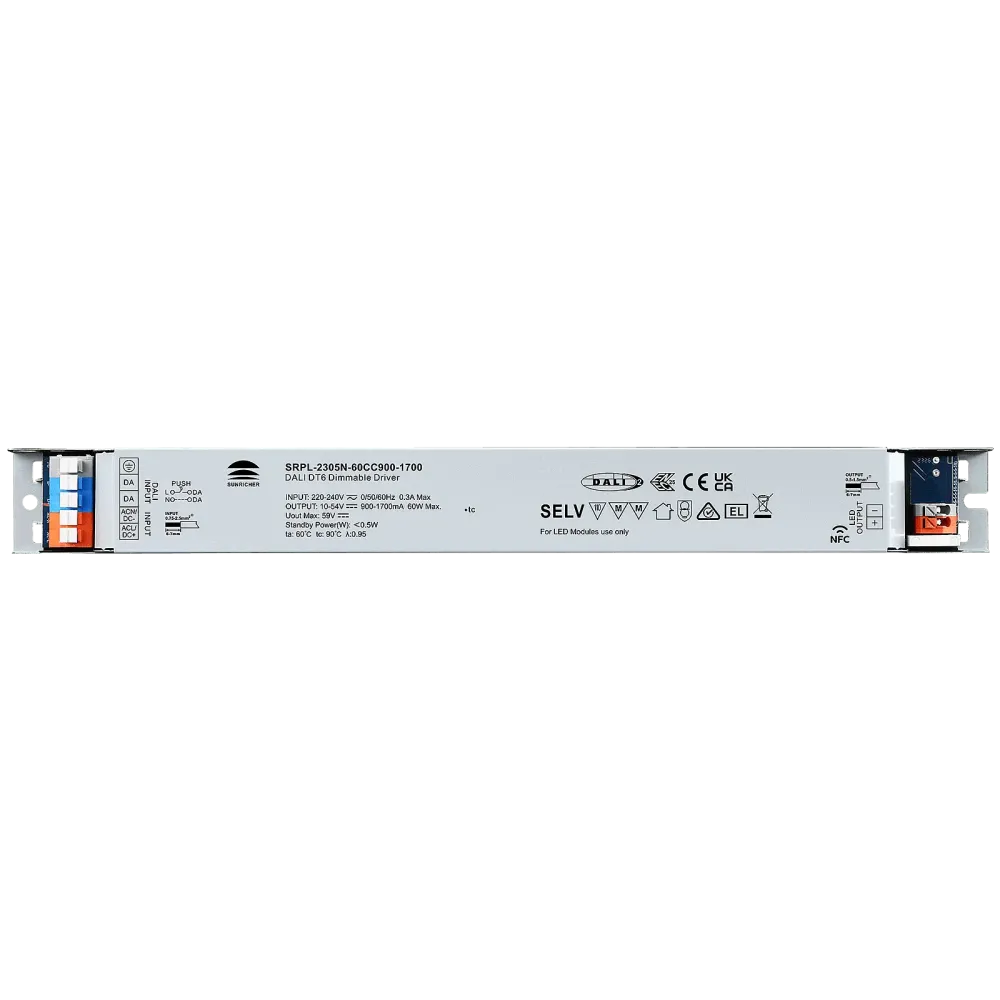

SRPL-2305N-60CC900-1700 is a flexible, dimmable 60W LED converter with constant current output. The power supply unit can be controlled with DALI2 DT6. The output current can be set between 900 and 1700mA via NFC.
In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.
Control
- DALI2 DT6, AC-PUSH
Application
- Single Color
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitudes/CCR
Technical data
- DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
- 1 channel 900~1700mA constant current output, selectable via NFC program tool
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Built-in DALI-2 interface, DALI DT6 device
- Setting the DALI address/group/scene via the NFC program tool
- Dimmable LED driver. Max. output power 60W
- Output voltage range: 10-54VDC
- Class 2 power supply unit
- High power factor and efficiency
- For switching and dimming LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT6 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: 280 x 30 x 21mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Current setting | NFC |
| Control | DALI, AC Push Dimming |
| Length | 280 mm |
| Width | 30 mm |
| Power | 60 W |
| Channels | 1 |
| Application | Single color |
| Height | 21 mm |
| Dimming type | Current control |
