About the product

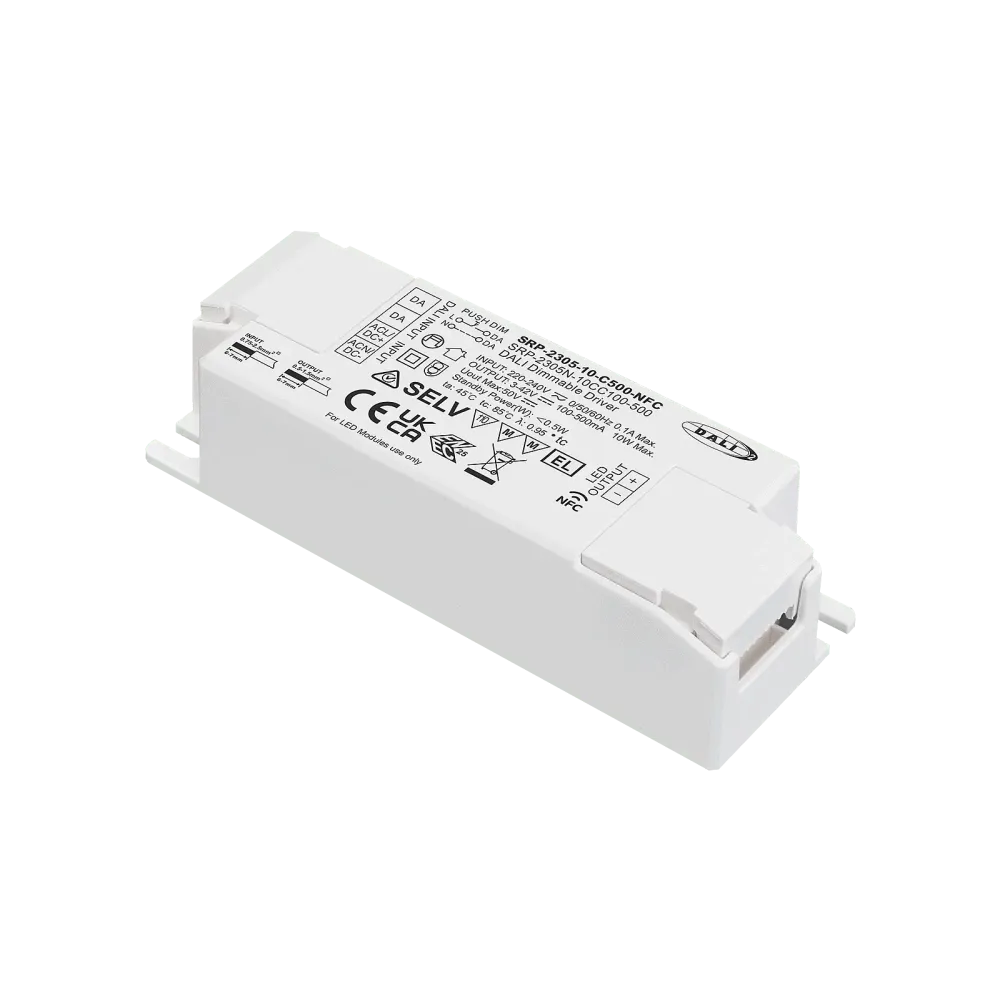

SRP-2305-10-C500-NFC is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI2 DT6. The output current can be set between 100 and 500mA via NFC.
Control
- DALI2 DT6, AC-PUSH
Application
- Single Color
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
- DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
- 1 channel 100~500mA constant current output, selectable via NFC program tool
- In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Built-in DALI2 interface, DALI DT6 device
- Dimmable LED driver. Max. output power 10W
- Output voltage range: 3-42VDC
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming LED lighting fixtures
- Amplitude dimming, smooth and deep dimming down to 0.01%
- Compatible with universal DALI masters that support DT6 commands
- Protection class IP20
- 5 year guarantee
- Dimensions: 101 x 36 x 25mm
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Product specifications
| Manufacturer | Sunricher |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Width | 36 mm |
| Length | 101 mm |
| Current setting | NFC |
| Height | 25 mm |
| Power | 10 W |
| Control | DALI, AC Push Dimming |
| Channels | 1 |
| Application | Single color |
| Dimming type | Current control |
