About the product

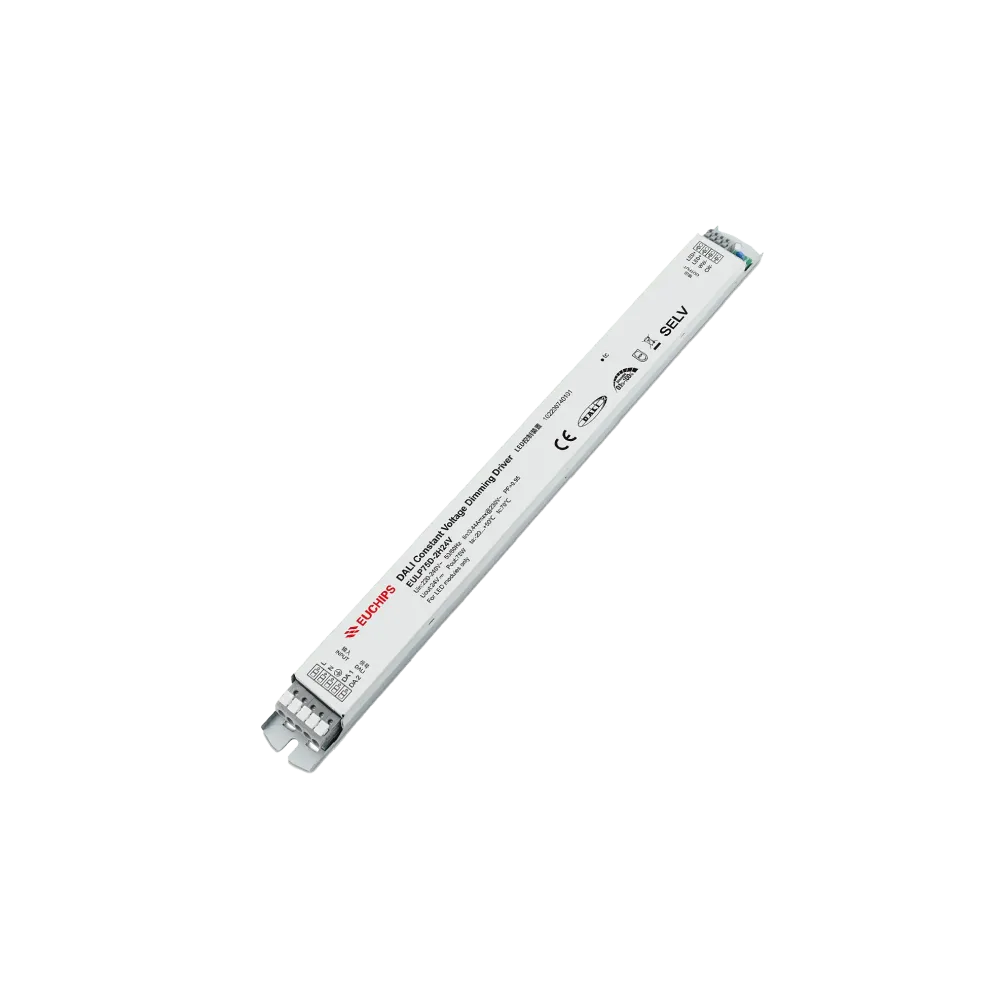

The LED driver EULP75D-2H24V with constant voltage output is designed for the operation of 24Vdc Tunable White LED lighting applications. The driver can be dimmed with DALI2 and AC Push in the range of 0.1-100%.
Control
- DALI2 DT8, AC-PUSH
Application
- Tunable White
Dimming range
The load-independent dimming range is from 0.1-100%.
Dimming method: PWM dimming, smooth and deep dimming down to 0.1%. Very high PWM frequency 4kHz
Product specifications
| Height | 21 mm |
| Connection | Spring clamp |
| Dimming type | PWM |
| Application | Tunable White |
| IP protection | IP20 |
| Output current | 3.125 A |
| Control | DALI2, DALI DT8, AC Push Dimming |
| Length | 360 mm |
| Width | 30 mm |
| Power | 75 W |
| Input voltage range (VAC) | 220-240 V |
| Channels | 2 |
| Output voltage (VDC) | 24 V |
| Manufacturer | EUCHIPS |
