About the product

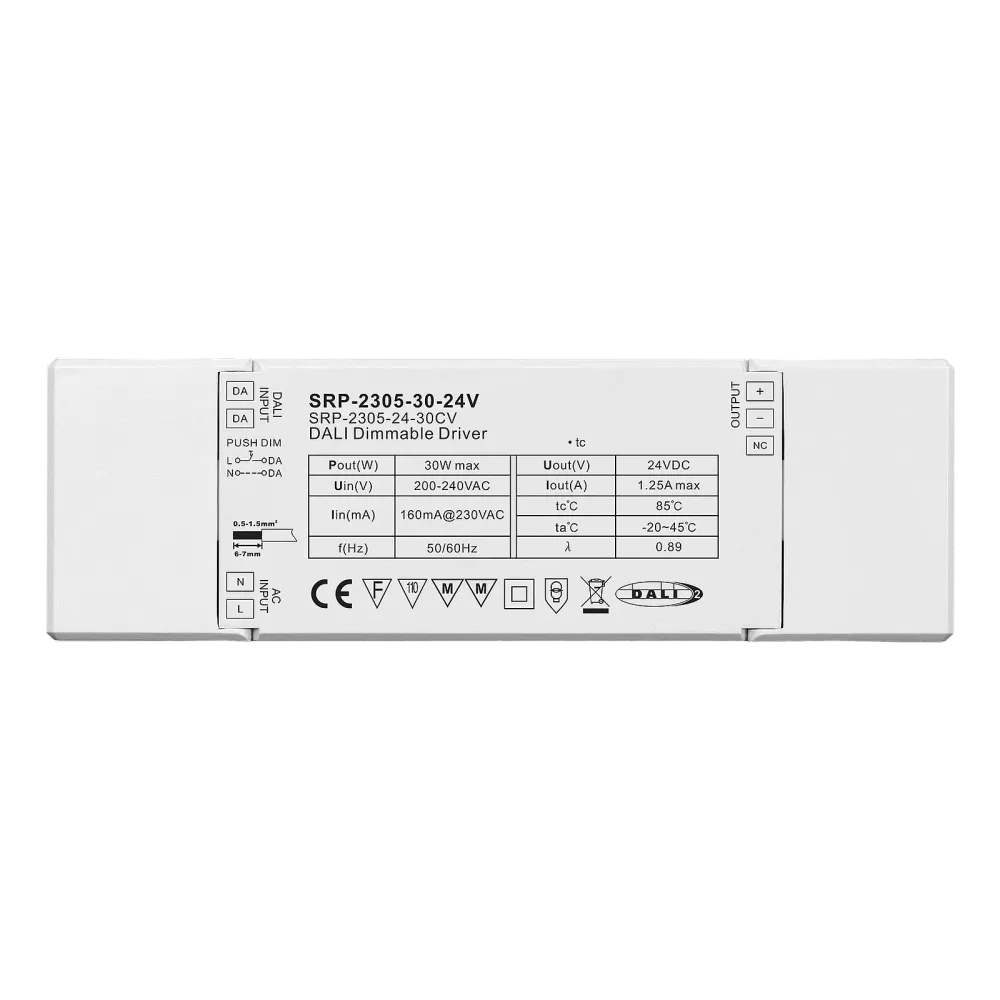

SRP-2305-30-24V is a flexible, dimmable LED converter with 24V constant voltage output. This power supply unit can be controlled with DALI2 DT6 and AC-Push.
Control
- DALI2 DT6, AC-PUSH
Application
- Single Color
Dimming range
The load-independent dimming range is 1% to 100%.
Dimming method: PWM 1.5kHz
Technical data
- DALI2 DT6 dimmable 1-channel single color power supply unit
- 220-240VAC wide input voltage range
- 1-channel 24V constant voltage output
- The maximum output power is 30W
- Built-in DALI2 interface, DALI DT6 device
- Generally compatible with DALI masters that support DT6 commands
- High power factor and efficiency
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 170 x 53 x 28mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Dimming type | PWM |
| IP protection | IP20 |
| Height | 28 mm |
| Length | 170 mm |
| Power | 30 W |
| Control | DALI, AC Push Dimming |
| Width | 53 mm |
| Product series | SRP-2305 |
| Input voltage range (VAC) | 220-240 V |
| Channels | 1 |
| Output voltage (VDC) | 24 V |
| Application | Single color |
| Connection | Spring clamp |
Data sheets
