About the product

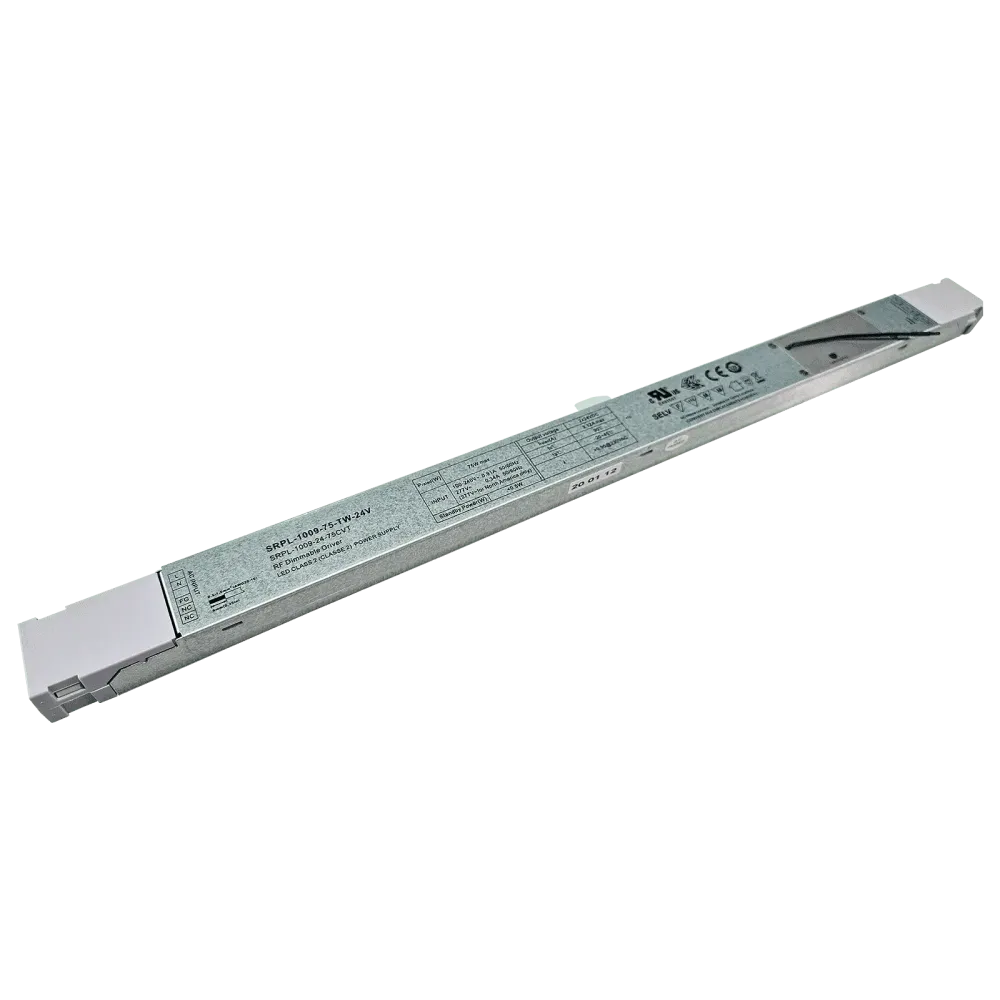

SRPL-1009-75-TW-24V with PWM output and integrated radio interface is ideal for operating Tunable White constant voltage LED applications such as LED strips.
Control
- RF Wireless, Low Voltage Push
Application
- Tunable White, Single Color
Dimming range
The load-independent dimming range is 0.1% to 100% of the connected load.
Dimming method: PWM, 1.5kHz
Technical data
- Radio (RF) dimmable 2-channel TW or single color power supply unit
- 100-277VAC wide input voltage range
- 2-channel 24V (total output power up to 75W)
- 75W are automatically distributed to the mixed colors
- Can be used as a single color or dual color (TW) power supply unit
- Compatible with all remote controls in the SC-1009 series
- DC push dimming function possible (if connected)
- IP20 protection class, suitable for indoor lighting projects
- Protection class I Driver with earth connection
- Metal housing
- Operating temperature range from -20°C to +45°C
- Dimension 486 x 30.7 x 20.9mm
- 5 year guarantee
Product specifications
| Output voltage (VDC) | 24 V |
| Control | Low Voltage Push, RF Wireless |
| Dimming type | PWM |
| Application | Single Color, Tunable White |
| IP protection | IP20 |
| Product series | SRPL |
| Height | 20.9 mm |
| Width | 30.7 mm |
| Length | 486 mm |
| Output current | 3.12 A |
| Power | 75 W |
| Channels | 2 |
| Input voltage range (VAC) | 100-277 V |
| Connection | Spring clamp |
