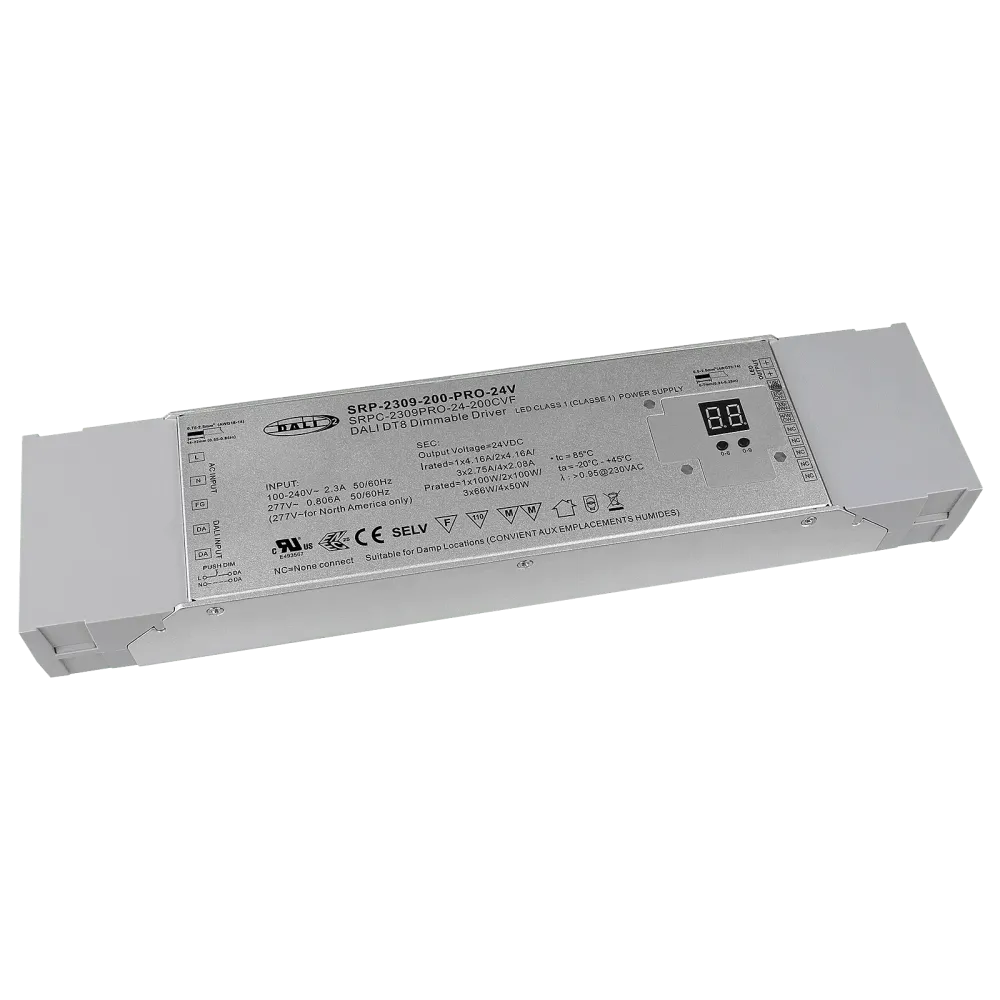

200W DALI2 DT8, 4in1, 24Vdc constant voltage LED driver

SRP-2309-200-PRO-24V with PWM output and integrated DALI2 DT8 interface is ideal for operating constant voltage LED applications such as LED strips. One device for all lighting situations, TW, single color, RGB and RGBW.

Control

• DALI2 DT8, AC-Push

Application

• Tunable White, RGBW, RGB, Single Color

Dimming range

The load-independent dimming range is 0.1% to 100% of the connected load.

Dimming method: PWM, 1.5kHz

Technical data

• dimmable 4 in 1 DALI2 DT8 power supply unit (primary N, Tc (Tunable White), XY coordinate, RGBW)
• 100-277VAC Input voltage range
• 4-channel DC24V constant voltage outputs
• Built-in DALI2 interface, DALI DT8 device, the device can be controlled via a Dali address
• Color control according to DALI DT8 specifications
• Complies with the DALI IEC 62386-209-:2011 standard
• Generally compatible with DALI masters that support DT8 commands
• Compatible with AC-Push Dimmer
• IP20 protection class, suitable for indoor lighting projects
• Protection class I Driver with earth connection
• Metal housing
• Operating temperature range from -20°C to +45°C
• Dimension 330 x 79 x 39mm
• 5 year guarantee
