About the product
LED insert with power supply unit and magnets for quickly converting existing conventional luminaires to LED
- Plug and play retrofit kits in various diameters from 50-930mm
- Power supply unit can be selected according to requirements such as CASAMBI etc., standard is always with DALI power supply unit
- 3000 or 4000K with CRI >90, Tunable White 2700-6500K with CRI>90
- Quick and easy installation thanks to magnets
- With connection terminal, strain relief and drop protection
Technical data

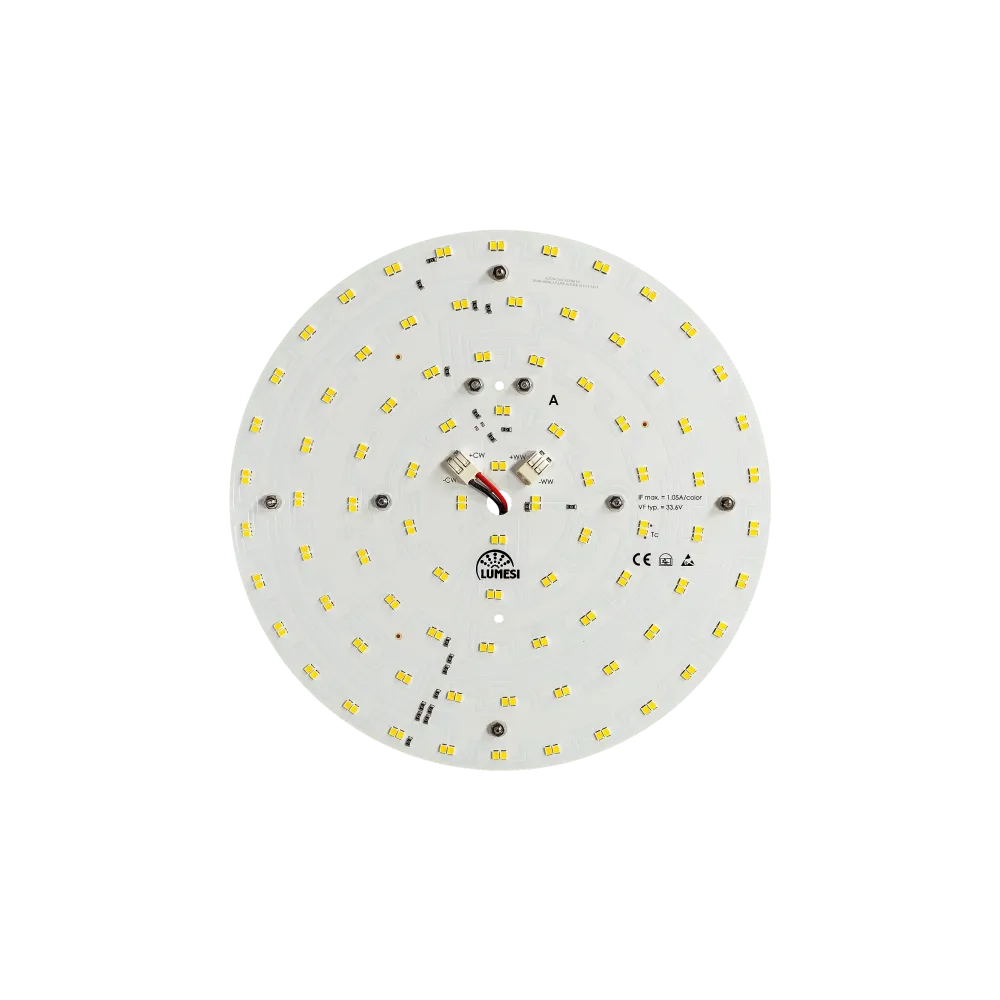

SIMROUND RETROFIT KIT
- Completely assembled
- Diameter: 180mm
- Overall height: 30mm
- PCB: FR4, white surface
- CCT: 3000K
- BIN: MacAdam 3
- CRI (Ra): > 90
- IF: Default 0.35A
- IF max.: 0.45A
- VF type: 32.2V
- Power: 11.3W
- Luminous flux: 2096lm @0.35A, Tc=40°C
- Netzteil: FLS-30-700-DALI2-LD-PRO-C
- Control: On/Off, DALI2, AC-PUSH
- Mounting: 3pcs. Spacer with power magnets
- 1pc. DALI connection terminal WAGO 294-4035
- 1pc. Strain relief ZEL 110
- 1pc. Safety catch
Product specifications
| Shape | Round |
| Colour rendering Ra | 90 |
| Colour temperature (K) | 3000 K |
| Outside diameter | 180 mm |
