About the product

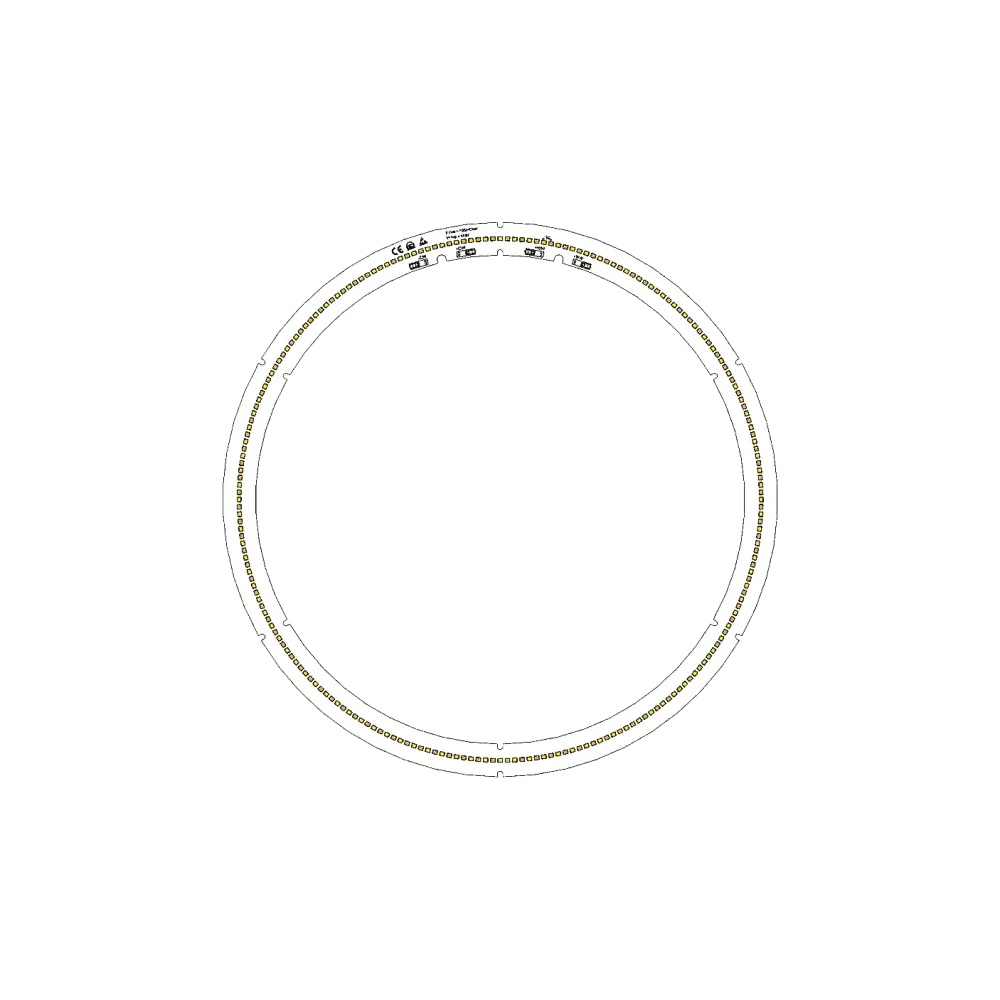

- Ring-shaped Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- Circline T5 60W replacement
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90 and still very high efficiency thanks to the new Samsung LM281B+PRO S90 LEDs
- Very narrow color tolerance (MacAdam 3)
- The SIMRING is ideal for retrofitting an existing Circline luminaire or for ring-shaped downlights, wall luminaires and ceiling luminaires
Product specifications
| Operating mode | CC |
| Outside diameter | 379 mm |
| PCB material | Aluminum |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700 - 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 90 |
| Forward current | 700 mA |
| Power | 31.2 W |
| Inner diameter | 334 mm |
| Forward voltage | 44.5 V |
| Shape | Ring |
| Luminous flux | 5286-5533 lm |
