About the product

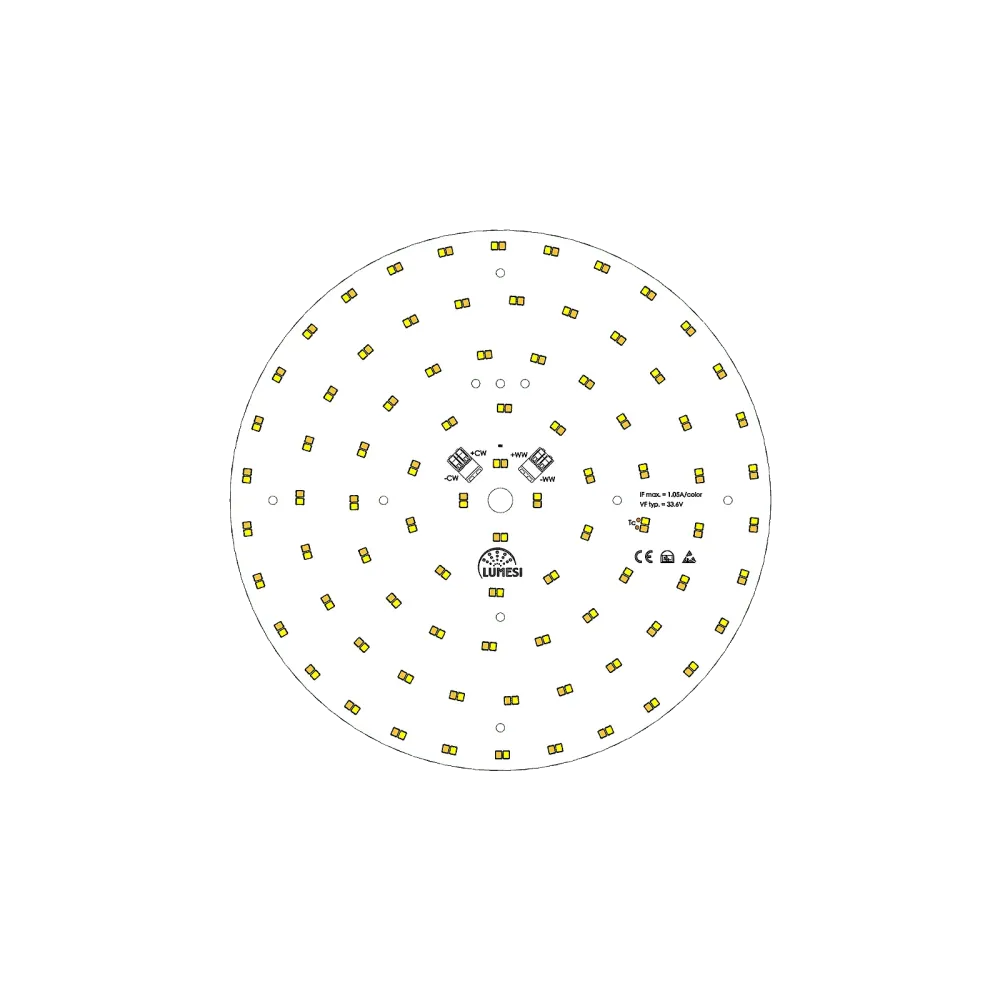

- Round Tunable White LED module with adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90 and still very high efficiency thanks to the new Samsung LM281B+PRO S90 LEDs
- Very narrow color tolerance (MacAdam 3)
Product specifications
| Operating mode | CC |
| Outside diameter | 220 mm |
| PCB material | FR-4 |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700 - 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 90 |
| Power | 19.9 W |
| Forward voltage | 33.1 V |
| Shape | Round |
| Forward current | 600 mA |
| Luminous flux | 3435-3597 lm |
