About the product

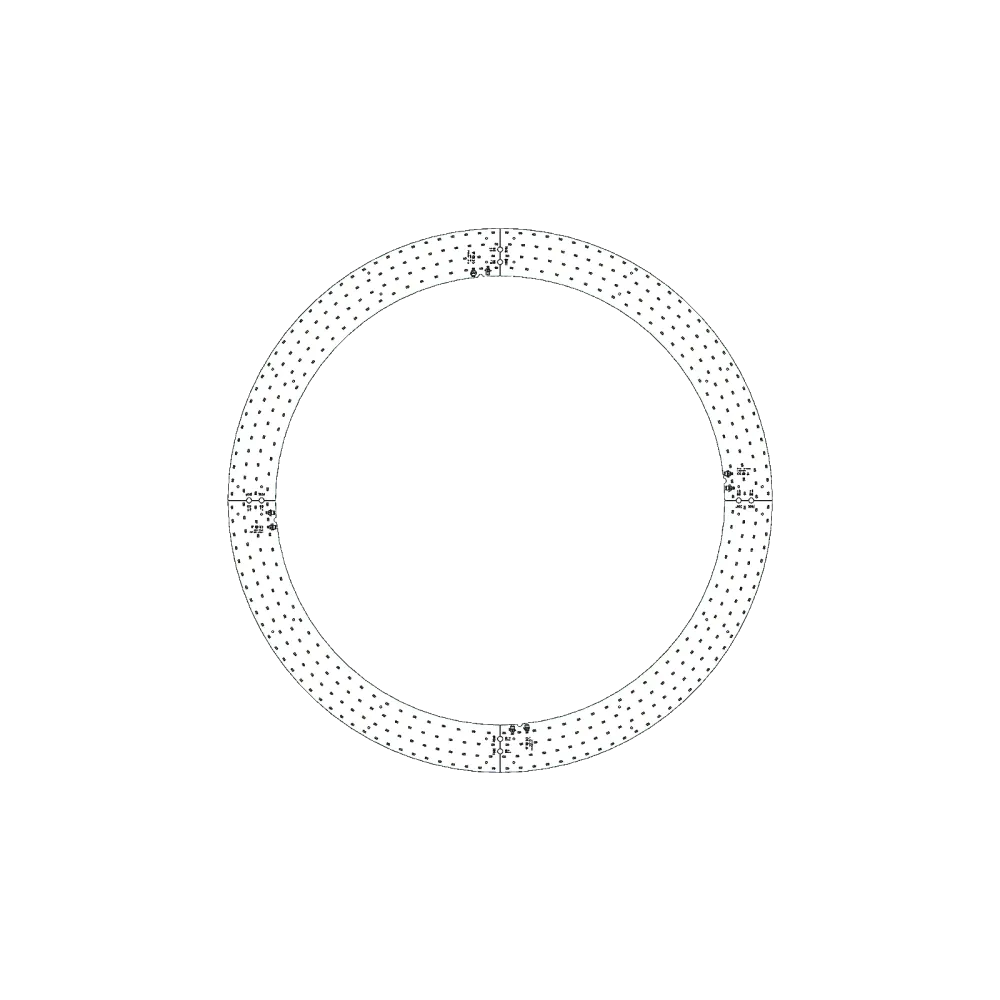

- Ring-shaped Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- The SIMRING is ideal for retrofitting an existing Circline luminaire or for ring-shaped downlights, wall luminaires and ceiling luminaires
- Extension to SO930D
Product specifications
| Operating mode | CC |
| Outside diameter | 1130 mm |
| PCB material | Aluminum |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700, 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 90 |
| Forward current | 1400 mA |
| Forward voltage | 43.2 V |
| Power | 60.5 W |
| Inner diameter | 0 mm |
| Shape | Ring |
| Luminous flux | 9569-10577 lm |
