About the product

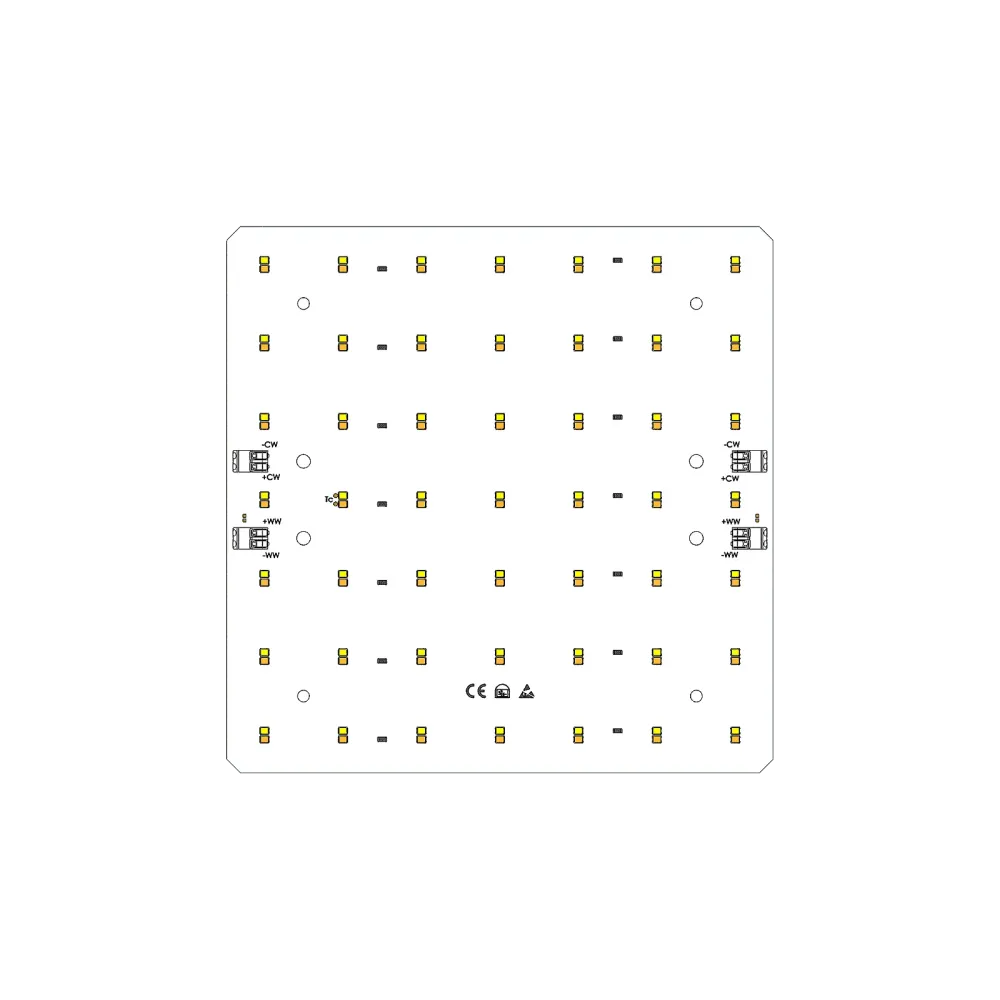

- Square Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- High color rendering Ra >80
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light color: warm white, cold white
- Color temperature: 2700K, 6500K
- Color rendering Ra: >80
- Color BIN: 3SDCM
- Typical luminous flux: 856lm, 924lm
- Operating mode: Constant voltage 24VDC
- Rated voltage: 24V
- Rated current type: 0.25A
- Nominal power typ.: 6W
- Dimension: 200x200mm
- Material: FR-4
- LED: 98 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 4x WAGO 2059-302 terminals (+WW, -WW, +CW, -CW))
- Radiation: 120°
Product specifications
| Operating mode | 24 V DC |
| PCB material | FR-4 |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700, 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 80 |
| Length | 200 mm |
| Shape | Square |
| Width | 200 mm |
| Luminous flux | 924 lm |
