About the product

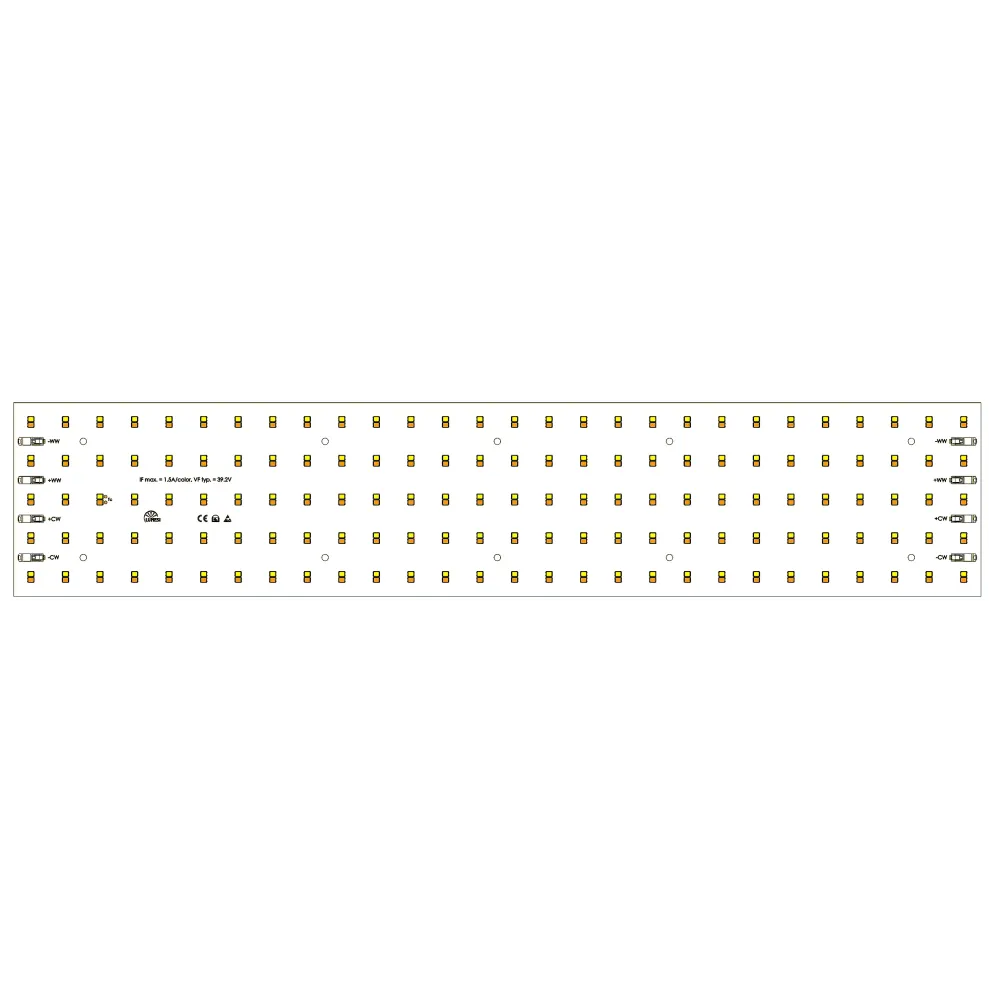

- Rectangular Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires or area lighting
Technical data
- Light color: warm white, cold white
- Color temperature: 2700K, 6500K
- Color rendering Ra: >90
- Color BIN: 3SDCM
- Typical luminous flux: 2148lm, 2374lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 26.6V
- Rated current type: 0.5A
- Nominal power typ.: 13.3W
- Dimension: 500x100mm
- Material: Aluminum
- LED: 280 pcs. Samsung LM281B+PRO LED (UK-Bin), LM80 tested
- Connections: 8x WAGO 2060-451_998-404 (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Operating mode | CC |
| PCB material | Aluminum |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700, 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 90 |
| Forward voltage | 26.6 V |
| Power | 13.3 W |
| Length | 500 mm |
| Width | 100 mm |
| Shape | Linear |
| Luminous flux | 2374 lm |
