About the product

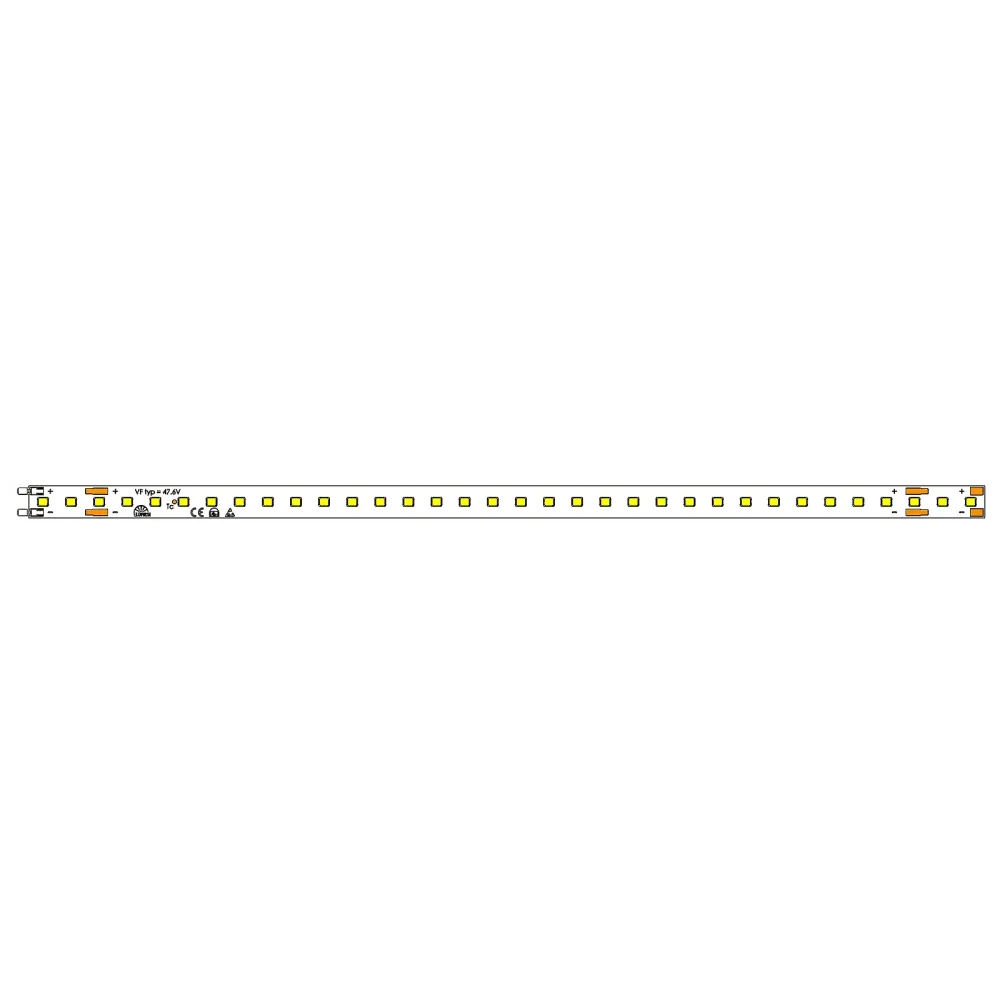

- Linear LED module for T5/T8 replacement
- Supplementary module for SM1130X10-C136-965-UG (T5) and SM1184X10-C136-965-UG (T8)
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires as a T5 1.45m or T8 1.5m replacement
- 3M GTP-020 adhesive tape on the back
Technical data
- Light color: Cold white
- Color temperature: 6500K
- Color rendering Ra: >90
- Color BIN: 3SDCM
- Typical luminous flux: 1081lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 46.7V
- Rated current type: 0.15A
- Nominal power typ.: 7W
- Dimension: 296x10mm
- Material: FR-4
- LED: 34 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 2x AVX 70-9159-001-402-006
- Beam angle: 120°
Product specifications
| Application | Single color |
| PCB material | FR-4 |
| Colour temperature (K) | 6500 K |
| Light colour | Cold white |
| Colour rendering Ra | 90 |
| Forward voltage | 46.7 V |
| Power | 7 W |
| Length | 296 mm |
| Forward current | 150 mA |
| Shape | Linear |
| Operating mode | CC |
| Width | 10 mm |
| Luminous flux | 1081 lm |
