About the product

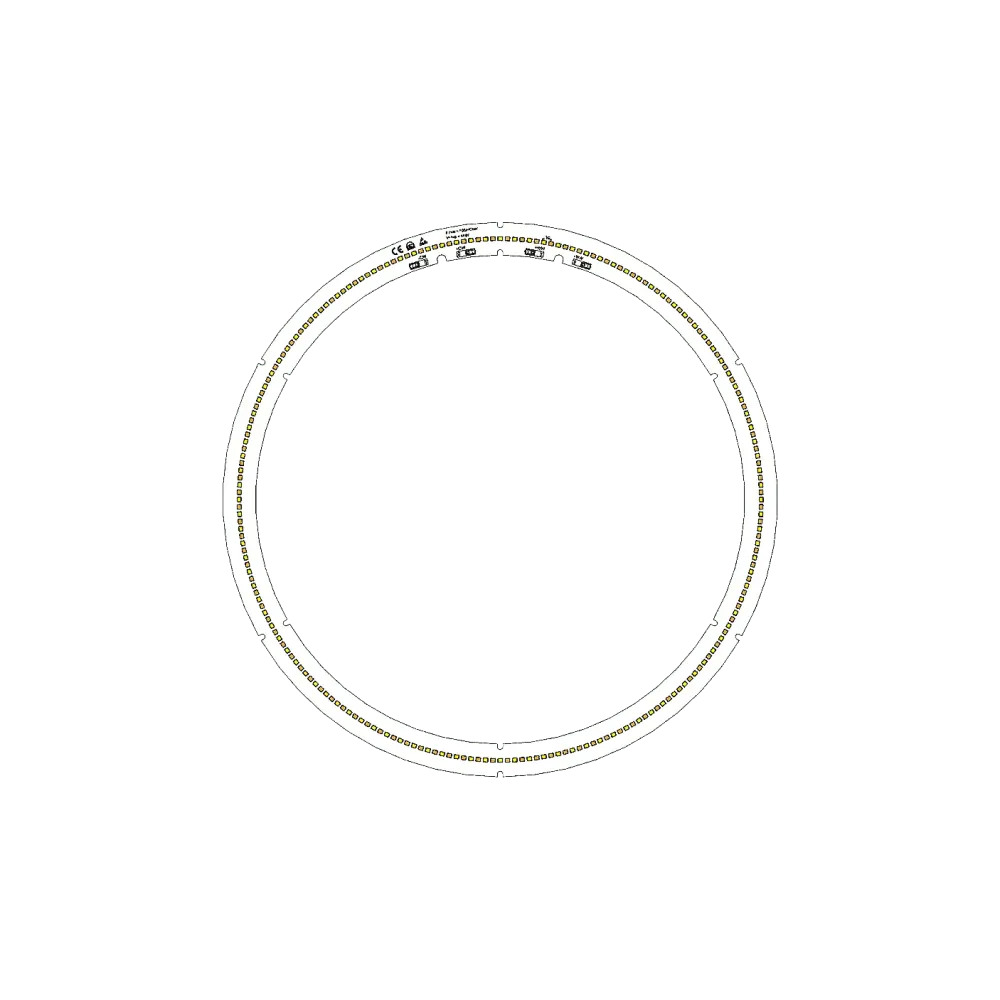

- Ring-shaped LED module
- Circline T5 60W replacement
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- The SIMRING is ideal for retrofitting an existing Circline luminaire or for ring-shaped downlights, wall luminaires and ceiling luminaires
Technical data
- Light color: Neutral white
- Color temperature: 4000K
- Color rendering Ra: >90
- Color BIN: 3SDCM
- Typical luminous flux: 5418lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 45.5V
- Rated current type: 0.8A
- Nominal power typ.: 36.4W
- Dimension: Ø379mm outside, Ø334mm inside
- Material: Aluminum
- LED: 112 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 4x WAGO 2060 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Application | Single color |
| Outside diameter | 379 mm |
| PCB material | Aluminum |
| Colour temperature (K) | 4000 K |
| Light colour | Neutral white |
| Colour rendering Ra | 90 |
| Forward voltage | 45.5 V |
| Power | 36.4 W |
| Inner diameter | 334 mm |
| Shape | Ring |
| Operating mode | CC |
| Luminous flux | 5418 lm |
