About the product

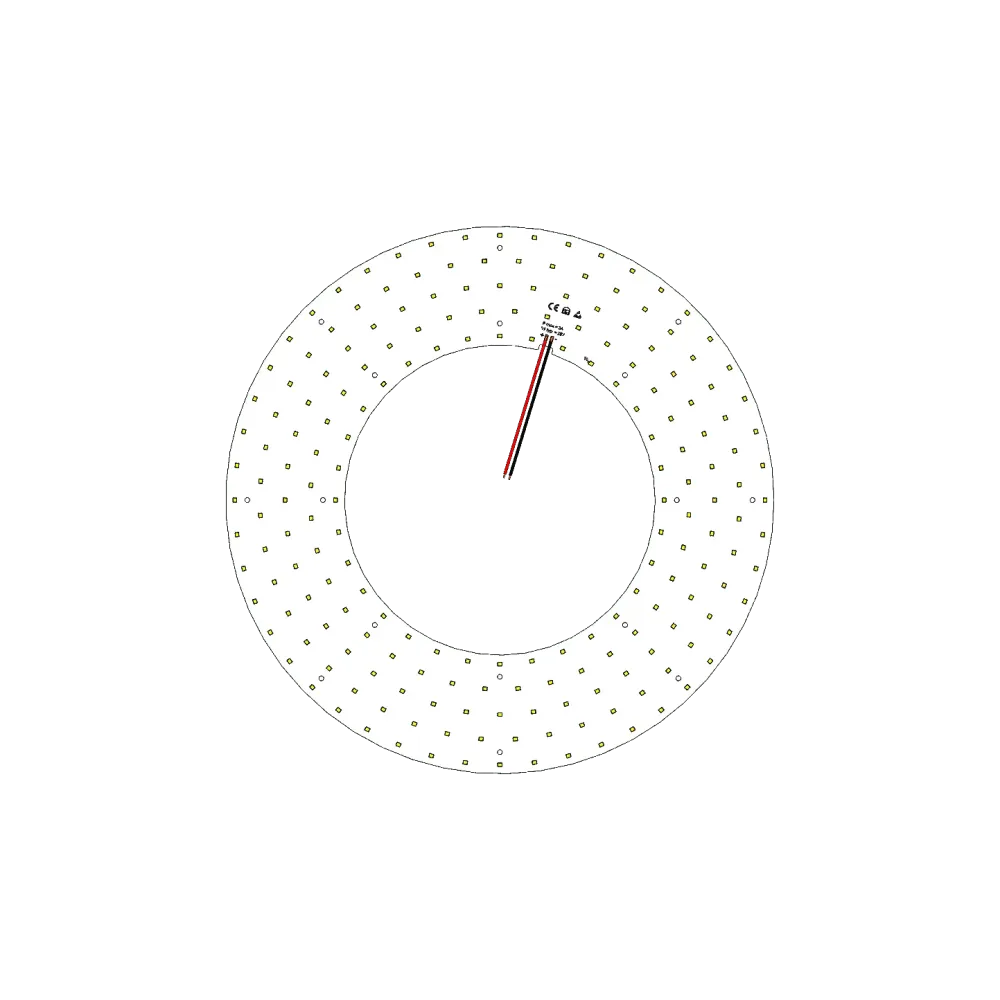

- Ring-shaped LED module with a color temperature of 4000K
- Extremely high module efficiency (constant current)
- High color rendering Ra >80
- Very narrow color tolerance (MacAdam 3)
- The SIMRING is ideal for retrofitting an existing Circline luminaire or for ring-shaped downlights, wall luminaires and ceiling luminaires
Technical data
- Light color: Neutral white
- Color temperature: 4000K
- Color rendering Ra: >80
- Color BIN: 3SDCM
- Typical luminous flux: 8169lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 27.6V
- Rated current type: 1.6A
- Nominal power typ.: 44.2W
- Dimension: Ø392mm outside, Ø222mm inside
- Material: Aluminum
- LED: 200 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 30cm soldered cable (+ / -)
- Beam angle: 120°
Product specifications
| Application | Single color |
| Outside diameter | 392 mm |
| PCB material | Aluminum |
| Colour rendering Ra | 80 |
| Colour temperature (K) | 4000 K |
| Light colour | Neutral white |
| Forward voltage | 27.6 V |
| Power | 44.2 W |
| Inner diameter | 222 mm |
| Shape | Ring |
| Operating mode | CC |
| Luminous flux | 8169 lm |
