About the product

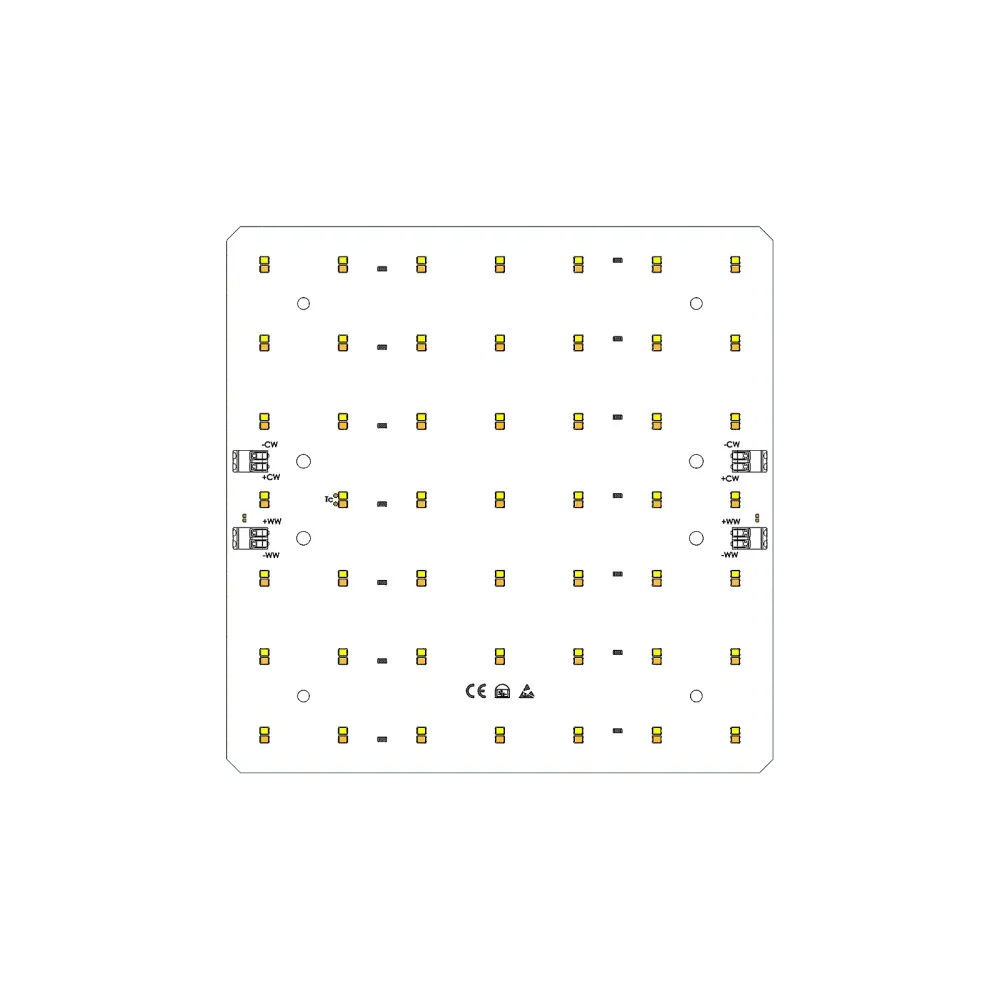

- Square Tunable White LED module with an adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Operating mode: 24V constant voltage
- Rated current: typ. 595mA
- Rated voltage: 24VDC
- Luminous flux: 1800lm@500mA, Ts=25°C
- Dimension: 200mm x 200mm
- LED: 98 x SAMSUNG LM281B+ LED (SG-BIN)
- Connector: 4 x Wago 2059-302
- PCB material: CEM-3
- Color temperature: 3000K-4000K
- CRI: >90
- Beam angle: 120°
Product specifications
| Operating mode | 24 V DC |
| PCB material | FR-4 |
| Colour temperature (K) | 3000, 4000 K |
| Application | Single Color, Tunable White |
| Light colour | Neutral white|Warm white |
| Colour rendering Ra | 90 |
| Length | 200 mm |
| Shape | Square |
| Width | 200 mm |
| Luminous flux | 1800 lm |
