About the product

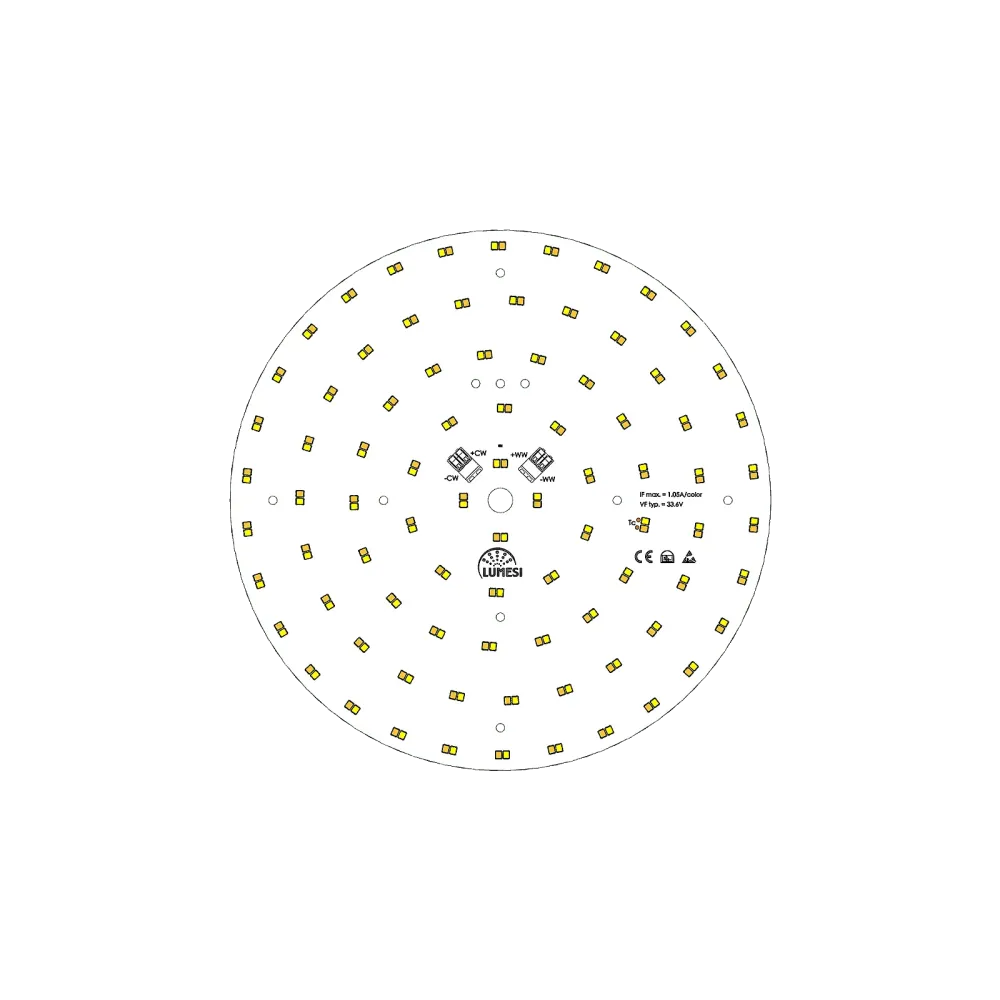

- Round Tunable White LED module with adjustable color temperature from 3000K to 4000K (= one print for 3000K or 4000K)
- This module can also be operated as a standard 3000K or 4000K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90 and still very high efficiency thanks to the new Samsung LM281B+PRO S90 LEDs
- Very narrow color tolerance (MacAdam 3)
Product specifications
| Operating mode | CC |
| Outside diameter | 220 mm |
| PCB material | FR-4 |
| Colour temperature (K) | 3000, 4000 K |
| Application | Single Color, Tunable White |
| Light colour | Neutral white|Warm white |
| Colour rendering Ra | 90 |
| Power | 19.9 W |
| Forward voltage | 33.1 V |
| Shape | Round |
| Forward current | 600 mA |
| Luminous flux | 3561-3790 lm |
