About the product

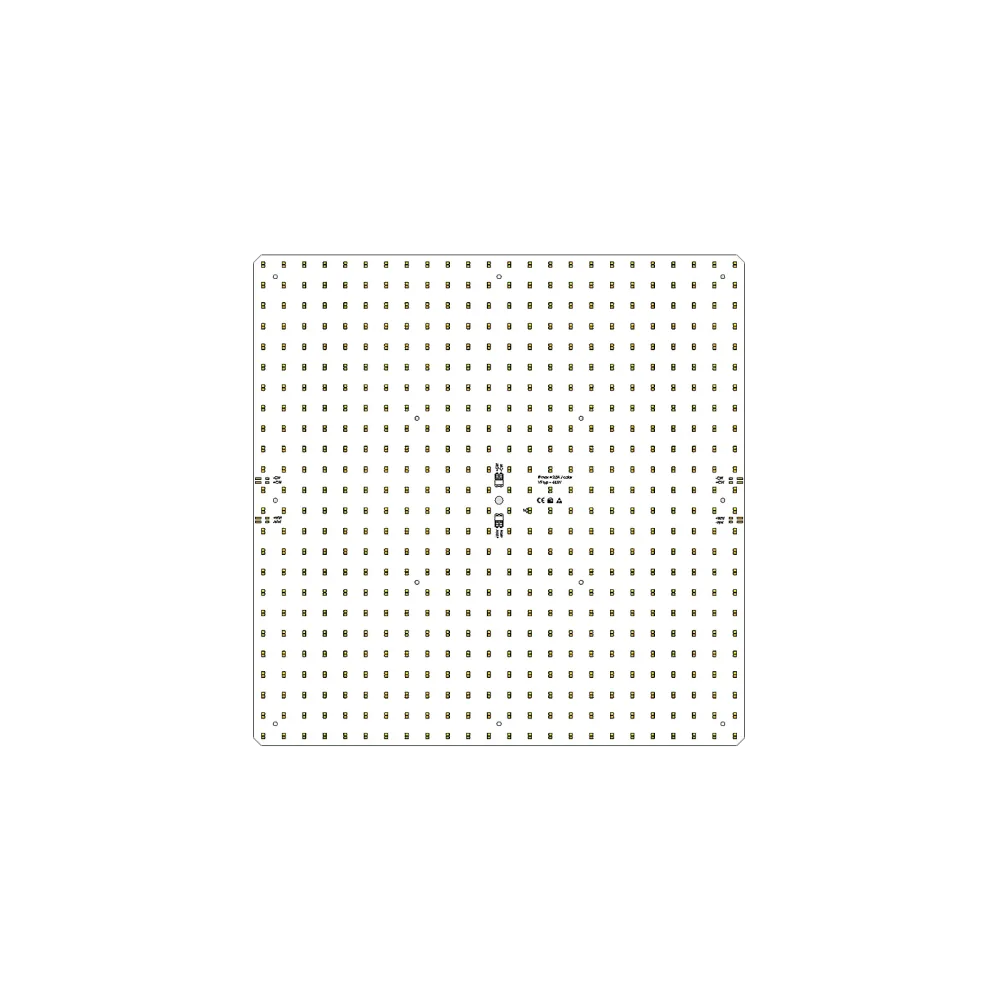

- Square Tunable White LED module with an adjustable color temperature from 3000K to 4000K (= one print for 3000K or 4000K)
- This module can also be operated as a standard 3000K or 4000K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Technical data
- Light color: warm white, neutral white
- Color temperature: 3000K, 4000K
- Color rendering Ra: >90
- Color BIN: 3SDCM
- Typical luminous flux: 6247lm, 6651lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 44.3V
- Rated current type: 0.9A
- Nominal power typ.: 39.8W
- Dimension: 494x494mm
- Material: Aluminum
- LED: 1152 pcs. Samsung LM281BA+ LED (U3-Bin), LM80 tested
- Connections: 2x WAGO 2060-452 terminals (+WW, -WW, +CW, -CW)
- Radiation: 120°
Product specifications
| Operating mode | CC |
| PCB material | Aluminum |
| Colour temperature (K) | 3000, 4000 K |
| Application | Single Color, Tunable White |
| Light colour | Neutral white|Warm white |
| Colour rendering Ra | 90 |
| Forward voltage | 44.3 V |
| Length | 495 mm |
| Width | 495 mm |
| Shape | Square |
| Luminous flux | 6651 lm |
